ERIK: an isokinetic exercise device for the lower limbs

  • 1Email author,
  • 2,
  • 3,
  • 4,
  • 1,
  • 1,
  • 1,
  • 1 and
  • 1
ROBOMECH Journal20185:15

https://doi.org/10.1186/s40648-018-0112-z

  • Received: 30 January 2018
  • Accepted: 29 May 2018
  • Published:

Abstract

In the current study, we tested a prototype of an isokinetic exercise device for the lower limbs, named the ERIK. The ERIK enables a type of single-limb squat exercise with a translational load on the swing leg in a closed kinetic chain, putting load on the muscles of the stance leg in the standing position. This training applies load to the gluteal muscles, which is effective for avoiding excessive knee valgus moment, a major factor in anterior cruciate ligament injuries. To enhance the quality of the load, an electro-rheological (ER) fluid brake system is implemented in the ERIK. The ER brake can reversibly control resistive torque with a rapid response. This paper reports a prototype of the device with four training modes, verifying its performance through basic experiments. Although high resistance is created within a wide motion area and requires isokinetic training by controlling the velocity of the trainee’s legs, the ERIK has the advantage of a high level of safety because of its passive resistive function.

Keywords

  • 23rd Robotics Symposia
  • Isokinetic exercise
  • Lower limb
  • Closed kinetic chain training
  • ER fluid

Introduction

Background and aim

Anterior cruciate ligament (ACL) injuries are a common knee injury during sporting activities. The number of ACL injuries per year in Japan has not been investigated on a national level, but is estimated to be approximately 4 in 10,000 individuals. In addition, approximately 10,000 ACL reconstructions are performed each year in Japan [1]. Similarly, the number of ACL injuries in the United States is estimated to be approximately 3 in 10,000 individuals per year [2].

In the current study, we tested a prototype of an isokinetic exercise device for the lower limbs. The proposed device involves a type of single-limb squat, which applies a translational load on the swing leg in the closed kinetic chain (CKC) style, placing load by the body weight on the muscles of the stance leg in the standing position. We refer to this training style as a resistive leg reach exercise [3]. This type of training applies load to the gluteal muscles, and is effective for preventing knee valgus moment, a major factor in ACL injuries. The primary goal of this style of training is to rehabilitate and/or preserve the ACL, and to provide a useful method for athletic strength training. To enhance the quality of the load used in this type of exercise, we have developed an electro-rheological isokinetic exercise device prototype, called the “ERIK” [46]. The ERIK includes an electro-rheological (ER) fluid brake system, which provides apparent viscosity that can be reversibly controlled by varying the applied voltage. In the current study, we tested the ERIK to verify its performance through reproducible experiments using a servomotor, in contrast with previous studies using only a basic control. Moreover, several new training modes were also tested, including the initial resistance mode and the terminal resistance mode.

Training styles

Strength training styles include an isotonic exercise performed with a constant load, an isometric exercise performed in a constant posture, and an isokinetic exercise performed at a constant angular velocity of the joint. However, because of the requirement of a real-time controller to apply resistance, very few commercialized products are available for isokinetic exercise training. Most of the currently available products target only rotational movements of a joint in a sitting position, such as the Cybex [7], HUMAC-NORM [8], and MARES [9] devices. Although a real-time speed control system using magneto-rheological fluid was included in a proposed stepper device [10], the equipment enabled limited trainee postures and motion types because of its recumbent design.
Fig. 1
Fig. 1

Schematic image of the resistive leg reach exercise in CKC training style

Closed kinetic chain training creates a closed-loop linkage with both legs and the floor. Importantly, because this type of exercise decreases the anterior shear and valgus forces on the knee joint, it has a high level of safety. Kimura et al. analyzed CKC training in the standing (loaded) posture for rehabilitation after ACL reconstruction, and applied it clinically to evaluate its safety and effects with a constant resistive force, as shown in Fig. 1, during a single-leg squat using a device with a sliding table and a rubber band [3, 11]. The single leg squat shown in Fig. 2 includes the right knee bending during the lateral opening motion of the left leg. The reversal motion is conducted during the lift up. However, because the device used a rubber band, the resistant force could not be controlled. Thus, improved training equipment is needed for isokinetic exercise, enabling easy and variable setting of the resistant force to provide acceptable levels of safety and effectiveness.
Fig. 2
Fig. 2

Strobe of a single leg squat motion

Isokinetic exercise has a number of benefits: (1) adequate resistance can be loaded for the whole range of motion; (2) the load can be easily tuned in coordination with the reference angular velocity because the joint rotates at a constant velocity; (3) incidental muscle injuries are unlikely to occur; and (4) quantitative evaluations of clinical tests and the effects of training are available, because the controller included in the training system enables the measurement of joint torque [12, 13].

The ERIK has the advantage of a high level of safety in isokinetic exercise, which conventionally requires controllable actuators, such as servomotors. In addition, the ERIK can load higher resistance within a wide motion area compared with conventional equipment. Unlike other devices, the ERIK enables control of the velocity of the leg during translational motion in isokinetic training, such as the open–close leg exercise. The single leg squat using the ERIK provides the constant velocity motion of the sliding leg; therefore the knee joint flexion at a constant velocity as mentioned as the above benefit (2) is not strictly produced. Thus, whether the isokinetic mode of the ERIK has adequate training effectiveness is confirmed in “Experimental verification” section.

Importantly, the ERIK has unique two training modes: the initial resistance mode, in which resistant force is maximal at the initial position of motion and decreases according to the movement distance of the leg, and the terminal resistance mode, in which the resistant force is minimal at the initial position of the leg and increases according to the moving distance (opposite to the the initial resistance mode). Although this type of resistance pattern is the same as that of devices using a rubber band, the ERIK enables easy adjustment of the maximum resistant force. The trainee can choose either of the modes for their particular training purpose.

ERIK: an isokinetic exercise device for the lower limbs in the standing position

ER fluid brake

Particle-type ER fluid is colloidal fluid consisting of suspended particles, and is commonly referred to as ER fluid. The fluid’s apparent viscosity increases when an electric field is applied. Thus, ER fluid is suitable as a working fluid in clutch or brake mechanisms for the specific requirements of control systems, possessing a rapid response speed and no hysteresis [14].
Fig. 3
Fig. 3

Sectional view of the ER brake

Figure 3 shows the basic structure of an ER brake [15] consisting of a fixed cylinder, a rotational cylinder with a driven shaft, and ER fluid filling the inside. Each cylinder can have a multi-cylindrical body, and the two cylinders also serve as a pair of electrodes. When voltage is applied between them, the output component is forced to slow down or halt. The braking torque does not depend on the shear rate (rotational speed), corresponding only to the magnitude of the applied voltage as shown in Fig. 4, especially the range between 60 and 240 s\(^{-1}\) referring the desired velocity in “Experimental verification” section. The maximum braking torque depends on the characteristics of the ER fluid used.
Fig. 4
Fig. 4

Shear stress characteristics of the ER fluid

Design and prototype of ERIK

Fig. 5
Fig. 5

Schematic image of the isokinetic exercise device for the lower limbs, ERIK

The basic design of the ERIK is shown in Fig. 5. The ERIK prototype is shown in Fig. 6. Its specifications are listed in Table 1. The device has a slidable platform on the top, which is connected to a timing belt. The belt engages with the ER brake via a pulley, transmitting the brake torque to the platform. The position and speed of the platform are calculated from the rotational angle of the brake, which is measured with an encoder. The controller, which runs on a PC, calculates the desired torque according to the situation and outputs this torque value to the ER brake. Quantitative evaluation of the training can be performed with these values because power, work, and other measures can also be calculated from these values. For optimal performance, the resistance must be able to respond rapid in response, exhibit high stability, and have a high torque to volume ratio, making devices using ER fluids preferable. The ERIK cannot move until the trainee moves it themselves, which inherently improves the safety of the device.
Fig. 6
Fig. 6

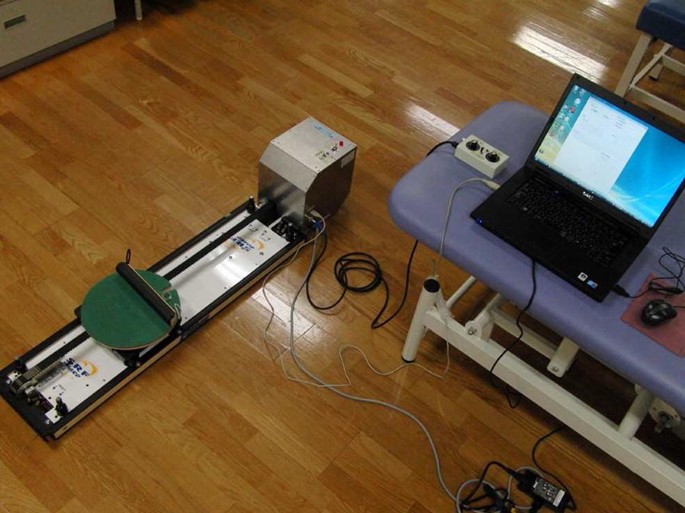

Prototype of the isokinetic exercise device for the lower limbs, ERIK

Training systems using servomotors, which are in common use and are superior to present ER brakes in terms of cost and availability, can enable isokinetic training. However, the other training modes of the ERIK produce resistive forces like frictions against the motion of the trainee. Moreover, it is substantially easier to maintain the safety of the trainee with an ER brake system compared with a servomotor system, particularly when an unexpected situation occurs. Magneto-rheological (MR) brakes, which also use a type of functional fluid, have the advantage of a higher torque-weight ratio than ER brakes, because of greater generative shear stress. However, unlike ER brakes with response times of around 5 ms, large torque type MR brakes slow response times of more than 30 ms in 100% response, and hysteresis [16].
Table 1

Specifications of the ERIK prototype

Parameter

Value

Size (\(\mathrm{W}\times \mathrm{H}\times \mathrm{L}\))

\(0.32\,\mathrm{m} \times 0.26\,\mathrm{m} \times 1.4\,\mathrm{m}\)

(From ground level to the platform top)

0.12 m

Movable range of platform

0.7 m

Generative maximum force

\(\sim\) 250 N

Desired velocity range

\(\le\) 1.2 m/s

The goal of exercising with the ERIK device is to strengthen leg squatting on a stage outside of the ERIK. The sliding leg on the platform of the ERIK meets resistance from the brake during squatting, then attempts the open–close exercise in the forward–backward or left–right direction, as shown in Fig. 7. These movements can be used to train muscles of the lower limbs loaded in both the longitudinal and vertical directions. The movable range of the platform is 0.7 m, but this can be restricted further with pins.
Fig. 7
Fig. 7

Examples of practical exercise styles

A high voltage amplifier and a microcomputer are located inside the main compartment. The ER brake was designed to generate 20 Nm torque at an applied voltage of 1 kV for a restricting force of over 200 N. The high voltage amplifier (ER-1.5k8PX, Chubu-R&D Co., Japan) can supply a maximum of 1.5 kV–8 mA with a response time of approximately 6 ms. The resolution of the encoder (E6B2, OMRON Co., Japan) was increased to 8000 ppr by the belt–pulley transmission mechanism. The microcomputer (iMCs01, iXs Research Co., Japan) transmits the command from the controller (PC), via USB, to the high voltage amplifier after digital to analog conversion. The microcomputer also counts pulses from the encoder, then transmits the information to the PC via USB.

On the controller PC, the software for control and evaluation ran during each sampling time of 10 ms. Although Windows does not ensure real-time responsiveness, the actual sample period was measured using the software. The PC provides a detailed description of the training conditions, a display for training results, and a mechanism for recording the results.
Fig. 8
Fig. 8

Input screen for the trainee’s data

Information about the trainee, the target number of strokes, and the training period is set on the input screen, as shown in Fig. 8. The training mode, the reference value of the training mode, and other details are set on the running screen, as shown in Fig. 9. Values for the resistant force or the desired velocity can be set as constants. The desired velocity of the platform is set to have a maximum value of 1.2 m/s, which is specified empirically in accord with previous studies [3, 11].
Fig. 9
Fig. 9

Screen during exercise. Users can input the training condition on the same screen

The running screen also provides trigger information for the training motion and graphs of the speed or the resistant force during training. The results of each training session are recorded in a CSV file for in-depth analysis.

Force characteristics of the prototype

A wire-driven system with a high output motor as shown in Fig. 10 was used to display the force characteristics of the ERIK. The force was measured with a load cell (LUR-A-500NSA1, Kyowa Electronic Instruments Co., Ltd., Japan) by pulling the platform via the wire by the servomotor (NX1040AS, Oriental Motor Co., Ltd., Japan). The servomotor controlled the rotational velocity, converted to the sliding speed of the platform at 0.20 m/s, except in the experiments testing the isokinetic exercise mode, in which the servomotor rotates with a constant torque of approximately 15 Nm.
Fig. 10
Fig. 10

Experimental system for measuring the braking force of the ERIK

The relationship between the energizing voltage V (kV) and resistant force F (N) of the ERIK prototype was experimentally determined as shown in Fig. 11. Although the shear stress of the ER fluids is known to depend on the square of the electric field, the experimental result is approximated using the following quadratic equations:
Fig. 11
Fig. 11

Voltage and braking force relation of the prototype

$$\begin{aligned} \left\{ \begin{array}{ll} F=126V^2+39.2V+22.5&{} \quad (V<0.8\,\text {kV})\\ F=-97.3V^2+358V-89.5&{} \quad (V\ge 0.8\,\text {kV}) \end{array} \right. \end{aligned}$$
(1)
Here, the coefficients of determination are over 0.96. According to Eq. (1), the ERIK can generate a braking force of almost 250 N at 1.5 kV, which is the maximum voltage for the prototype.
The voltage calculated with the reference force and the inverse function of Eq. (1) was applied to the ER brake to ensure that the ERIK could generate the desired resistive force. The measured values and the line of direct proportion are shown in Fig. 12. When the reference is over 22.5 N, the measured values increase proportionally. The coefficient of determination of the results from the line was 0.998, confirming that the ERIK was able to represent the reference force.
Fig. 12
Fig. 12

Reference and measured force relation of the prototype

Control methods

The isotonic mode

The isotonic mode enables isotonic exercise by loading a constant resistant (braking) force by the ERIK. The ER brake torque was calculated from the target value and Eq. (1) using feed-forward control.

The isokinetic mode

Real-time controlled resistance against the maximum effort of the trainee to slide the platform is generated for the isokinetic mode to keep the sliding velocity of the platform at the desired constant value.
Fig. 13
Fig. 13

Block diagram of the IPD controller for the isokinetic mode

The ER brake torque was controlled by a I-PD speed controller as shown in Fig. 13. Here, the velocity v, the target velocity \(v_r\), the resistant force \(F_r\), the model of the ER brake \(G_{ERB}\), the model of the ERIK \(G_{ERIK}\) and feedback gains \(K_I\), \(K_{P1}\), \(K_{P2}\) and \(K_D\) are used. The value of \(v_r\) is decided by the trainer according to the condition of the trainee. The driving force for the platform by the trainee \(F_{trainee}\) was treated as a disturbance. The speed controller using passive elements was empirically selected; the simple IP controller was avoided because the IP controller did not produce appropriate results [4]. Thus, adding degrees of freedom to the IP controller for following the velocity and suppression of vibration, and the resistant force \(F_r\) can be expressed as follows:
$$\begin{aligned} F_r&= K_I \int (v_r-v)dt + K_{P1}(v_r-v)- K_{P2}v -K_D\dot{v} \nonumber \\&if\ F_r<0,\ then\ F_r=0. \end{aligned}$$
(2)
The driving force for the platform depends on the trainee, and modeling a trainee’s body is complex. For this reason, despite the platform’s position being restricted to the external floor by the trainee’s leg, the feedback gains were experimentally tuned, as shown in Fig. 14. The feedback gain \(K_{P2}\) contributed suppression of vibration of the platform’s motion. Because the feedback gains cannot be treated as optimized, they could potentially be improved with other tuning methods.
Fig. 14
Fig. 14

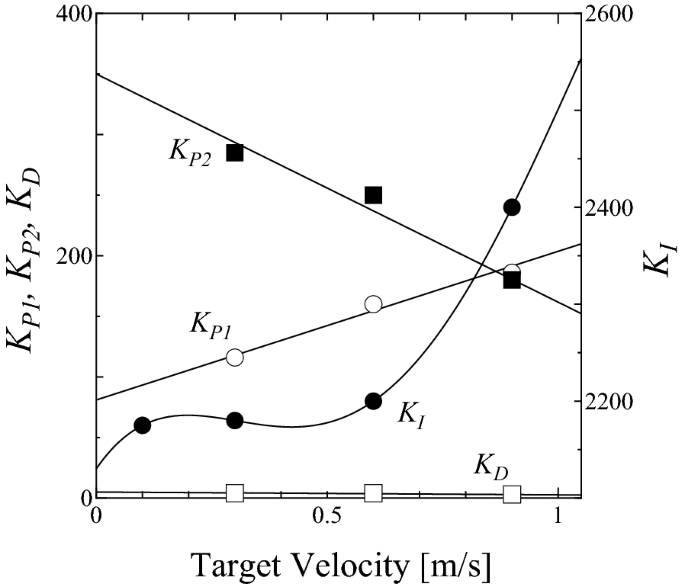

Feedback gains of the isokinetic mode

The initial resistance mode

Because ACL injuries often occur at shallow knee bending, the initial resistance mode is expected to improve the posture control ability and prevent knee from injuries in shallow knee bending postures. Given the position of the platform x, the preset stroke length \(x_{max}\), the target force value \(F_{rmax}\) shown in Fig. 9 and the base resistive force \(F_{rb}\), \(F_r\) can be expressed as follows:
$$\begin{aligned}&F_r = \left( 1-\frac{x}{x_{max}}\right) F_{rmax} \\&if\ F_r<F_{rb},\ then\ F_r=F_{rb}. \nonumber \end{aligned}$$
(3)
In the current study, \(x_{max}\) = 0.70 m and \(F_{rb}\) = 50 N were fixed. Using Eq. (1), V was calculated and applied to the ER brake.

The terminal resistance mode

The terminal resistance mode can augment the activity of major muscles and the internal hip abduction moment with deep knee bend of the squatting leg: a sporting activity often require the posture. In this mode, \(F_r\) can be written as same as in the previous section:
$$\begin{aligned}&F_r = \frac{x}{x_{max}}F_{rmax} \\&if\ F_r<F_{rb},\ then\ F_r=F_{rb}. \nonumber \end{aligned}$$
(4)

Experimental verification

The initial resistance mode

This section describes the experimental verification of the ERIK and the controllers for the initial resistance modes using the measurement system, as shown in Fig. 10. The motor pulled the platform at a constant speed of approximately 0.20 m/s while the ERIK controlled and loaded the resistance.

Figure 15 shows the results of trials for a target force of 50, 100, 150 and 200 N. The resistance force decreases according as Eq. (3) under 150 N. In the case of the target force of 200 N, the force in the starting phase is larger than the target value because of stretching of the wire and the stick–slip phenomenon of the ER brake.
Fig. 15
Fig. 15

Force response in initial resistance mode exercise

The terminal resistance mode

Figure 16 shows the results of trials in the terminal resistance mode, under the same conditions described in the previous section.
Fig. 16
Fig. 16

Force response in terminal resistance mode exercise

The resistance forces increased according to Eq. (4).

The isokinetic mode

Figure 17 shows the results of trials in the isokinetic mode for target speeds of 0.30, 0.60 and 1.2 m/s. The platform was operated by one of the authors.
Fig. 17
Fig. 17

Results of isokinetic exercises

The results revealed that isokinetic motion was almost realized, although the response at 1.2 m/s did not show a sufficient time period for evaluation while achieving the constant controlled speed.
Fig. 18
Fig. 18

Mean speed values and command values of resistant force in isokinetic exercises

The mean speed values during the constant speed shown in Fig. 18 indicated that the ERIK was able to follow the target velocity. The bullet shows the mean speed value for each reference speed. The coefficient of determination of the results from the dashed proportional line is 0.998. The white circle shows the mean command force to the ERIK during the constant speed. This value would be expected to vary in each trainee, and could be used for evaluation of muscular function or motion function.

EMG of a healthy subject

This section describes the experimental verification of the ERIK and the controllers for the training modes using a healthy subject as a trainee. The trainee slid their left leg on the platform to the left while squatting down, then slid the same leg to the right while standing up. The subject was instructed to bend his right knee until about 80\(^\circ\), and practiced before experiments. In experiments, a bar was set in the front of the bending knee for a guide to control the knee bending angle. When sliding to the left, the resistance was loaded by the ERIK, while no resistance was loaded when sliding to the right. Because the particular muscles to be strengthened for preventing ACL injuries include the quadriceps femoris, gluteus medius (Gmed), gluteus maximus (Gmax), electromyograms (EMGs) of these muscles were measured. Vastus medialis (VM) was selected among the quadriceps femoris. For example, we conducted isotonic exercises for target forces of 0 and 120 N and a target speed of 0.25 m/s.
Fig. 19
Fig. 19

RMS EMG during isotonic exercise. The target force was 0 N

Fig. 20
Fig. 20

RMS EMG during isotonic exercise. The target force was 120 N

Root-mean-square (RMS) in 50 ms processed EMGs are shown in Figs. 19, 20 and 21. Each graph shows data during one squatting motion. Comparing with the EMG in the 0 N isotonic mode, exercises in the other modes required greater muscular activity, particularly in Gmed and Gmax. Exercise in the isokinetic mode requires slower motion under this condition compared with isotonic exercises. However, isokinetic exercise places a greater load on the gluteal muscles than isotonic exercise. This indicates that the effects of using the ERIK were as planned.
Fig. 21
Fig. 21

RMS EMG during isokinetic exercise. The target speed was 0.25 m/s

EMG of ACL reconstructed subject

A male subject 1 year after an ACL reconstruction operation underwent tests using the ERIK. The subject was a professional soccer player in his twenties. The testing method was the same as that described in the previous section.
Fig. 22
Fig. 22

RMS EMG of an ACL reconstructed subject during isotonic exercise. The target force was 0 N

Fig. 23
Fig. 23

RMS EMG of an ACL reconstructed subject during isotonic exercise. The target force was 120 N

The results are shown in Figs. 22, 23 and 24. In the isotonic mode, the Gmed was loaded with a particularly large force from the opening of the exercise. Compared with the previous section, Gmax showed a slightly smaller but stable EMG during the period. In addition, the VM generally exhibited large EMG values. In the isokinetic mode, large forces are loaded on three muscles from the opening to the middle in spite of the moderate force loaded from the middle.
Fig. 24
Fig. 24

RMS EMG of an ACL reconstructed subject during isokinetic exercise. The target speed was 0.25 m/s

In addition, we conducted comparative tests using a conventional training device with a rubber band. Because the conventional device generates 80 N in the fully tensioned position of the platform, the results in the isokinetic mode of 80 N by the ERIK were also examined.
Fig. 25
Fig. 25

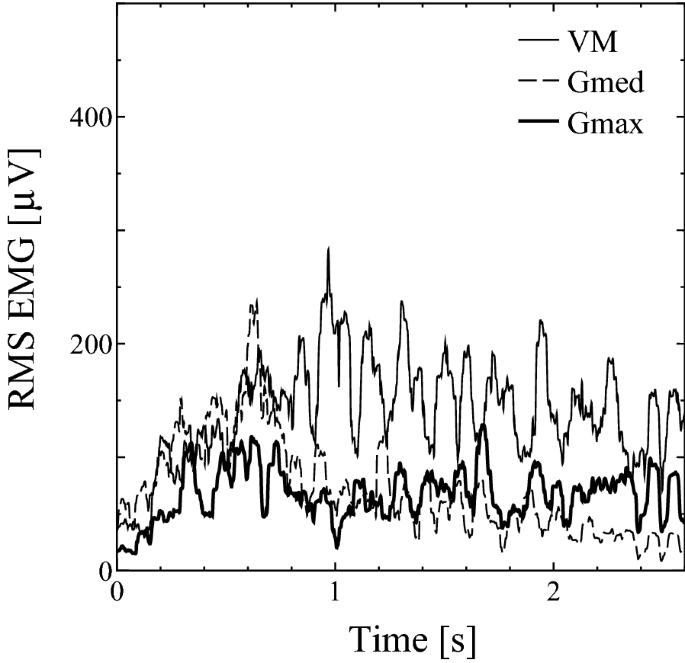

RMS EMG of a subject with a reconstructed ACL during isotonic exercise. The target force was 80 N

The results are shown in Figs. 25 and 26. Loads using the conventional device are shown as the terminal resistance mode. The EMG of the VM had a greater value from the middle compared with EMG during exercise with the ERIK. In contrast, Gmed exhibited moderate EMG signals when opening, followed by low values. Little force was loaded on Gmax during this period.
Fig. 26
Fig. 26

RMS EMG of a subject with a reconstructed ACL using conventional equipment

Discussions

Excessive external knee valgus moment is a major factor in noncontact ACL injury [17, 18]. Gluteal muscle activity is important for preventing this, as well as excessive hip adduction [19]. Quadriceps femoris weakness is a common problem after injury and reconstruction of ACL [20, 21].

Proper isotonic mode and isokinetic mode exercise using the ERIK increased the load of Gmed and Gmax without reducing the load of VM, suggesting that these exercise modes may be useful for preventing ACL injury and recovering after ACL reconstruction. The results also indicate the ERIK was able to produce a more effective load on the gluteal muscles than the conventional device. Because ACL injuries often occur at shallow knee bending, the ability to apply specific loads on gluteal muscles from the opening of training is important for the prevention of ACL injury. These findings suggest that the ERIK provides an effective device for this type of training.

Conclusion

In the current study, we tested an isokinetic exercise device prototype, named the ERIK, for the lower limbs. The ERIK involves a resistive lateral/backward leg reach exercise in the CKC style, which applies load to the muscles in the standing position. In addition, the prototype uses an ER fluid brake to control the resistance. In the current study, we reported basic experimental results corresponding to four training modes. The isokinetic exercise mode was verified using electromyogram data, in which a large load was effectively applied to the gluteal muscles while protecting the ACL.

It should be noted that a problem remains with evaluation during isokinetic mode training of a specific duration. To address this difficulty, Also we plan to develop a displaying system set of evaluation and training conditions methods to provide helpful feedback to the trainee.
