Force sensor utilizing stiffness change of shape-memory polymer based on temperature

Abstract

In this study, we propose a force sensor using a shape-memory polymer (SMP) whose stiffness varies according to the temperature. An SMP can be deformed above its glass transition temperature (T g) by applying a small load. A deformed SMP maintains its shape when cooled below T g and returns to its predefined shape when subsequently heated above T g. The reversible change in the elastic modulus between the glassy and rubbery states of an SMP can be on the order of several hundred-fold. The relationship between the applied force and the deformation of the SMP changes depending on the temperature. Our sensor consists of strain gauges bonded to an SMP bending beam and senses the applied force by measuring the strain. Therefore, the force measuring range and the sensitivity can be changed according to the temperature. In this study, we evaluate a prototype of the sensor using the SMP sheet with embedded electrical heating wire. Moreover, we improve the sensor by combining the SMP and a stainless steel plate. The enhanced versatility of SMP force sensors is demonstrated through a series of experiments conducted using the prototype.

Background

In today’s rapidly aging societies, robotic technology has been applied to various fields including industrial as well as nursing and welfare. For example, several power-assist suits and power assist apparatus have been proposed as wearable robots for caregivers and rehabilitation systems [1]. In these applications, it is necessary to measure a wide range of forces to grasp and lift various objects in the various operating environment accurately [1]. Previously, for example, a wide-range and sensitive force sensor using a quartz crystal resonator was proposed [2]. Unlike this research, the characteristic of our proposed sensor is the utilization of the stiffness change of the material based on the temperature. To our knowledge, the stiffness change of the material has not yet been utilized for wide-range and sensitive force sensors. In the present study, we exploit the inherent advantageous properties of shape-memory polymers (SMPs) [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18] for use in the force sensor.

SMPs are often described as two-phase structures, comprising a lower-temperature “glassy” hard phase and a higher-temperature “rubbery” soft phase. The hard and soft phases represent two elastic moduli: one in the lower-temperature, higher-stiffness ‘‘glassy’’ plateau and the other in the higher-temperature, lower-stiffness ‘‘rubbery’’ plateau. For example, in order to explain the thermomechanical behavior of SMPs, Liu et al. [3] developed a thermomechanical constitutive model of epoxy SMP using phase transition (frozen phase and active phase) theory. The reversible change in the elastic modulus between the glassy and rubbery states of SMPs can be as high as several hundred-fold. SMPs can be deformed above their glass transition temperature (T g) by applying a small load. Moreover, SMPs maintain their shape after they have been cooled below T g and are considered rigid in this state. When subsequently heated above T g, they return to their initial shape and hence exhibit shape recovery. With these features in mind, SMPs are increasingly being investigated for use in smart materials such as those found in textiles, ergonomic utensils, spacecraft solar sails, morphing skins, intelligent medical devices, and implants for minimally invasive surgery [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18]. We previously proposed a position-keeping module [4], soft actuators [5,6,7,8], and deployable structures [9] that use SMPs.

In this study, utilizing the abovementioned technology and knowledge of SMP uses, we developed a new force sensor whose force measuring range and sensitivity can change according to the temperature. A prototype of this sensor was made by attaching a strain gauge onto an SMP sheet with embedded electrical heating wire, and we evaluated its basic characteristics.

Concept of the force sensor

Most force sensors transform the mechanical deformation of the detecting area according due to the applied force into a change in resistance, capacitance, or reflectance that can be measured using electric signals. For example, some force sensors consist of strain gauges bonded to a bending beam. Assuming an elastic cantilever, the strain on the strain gauge (ε) can be expressed as follows [19]:

$$\varepsilon \, = \, \frac{y}{R}$$
(1)

where y is the distance between the neutral axis and the strain gauge and R is the radius of curvature. R in turn is expressed as follows:

$$\frac{\text{1}}{{R\text{ }}}\text{ } = \text{ }\frac{Wx}{{EI\text{ }}}$$
(2)

where W is the applied load, x is the distance between the strain gauge and the position where the force is applied, and E and I are the elastic modulus and area moment of inertia, respectively, of the beam. When the beam has uniform stiffness and the cross section of the beam is a rectangle, from Eqs. (1) and (2), W can be calculated using the following equation:

$$W\text{ } = \text{ }\frac{{bE\mathop h\nolimits^{\text{2}} \varepsilon }}{{\text{6}x}}$$
(3)

where b and h are the width and thickness of the beam, respectively. Using Eq. (3), we can calculate the applied force (W) from the strain measured (ε) by a strain gauge attached to a beam such as a stainless steel plate. However, once the strain gauge is glued onto the plate, it is difficult to change the measurement range and sensitivity. Namely, the deformation range depends on the sensor material, and it is difficult to change these specifications after the sensor is produced.

In order to solve these problems, we developed a force sensor using an SMP sheet as the beam. As described in "Background” section, E can be changed according to the temperature. Therefore, the relationship between ε and W [namely Eq. (3)] can also be changed (Fig. 1). In Fig. 1, depending on the type of strain gauge and beam, the measurable strain range is determined (the range shown on the horizontal axis of Fig. 1). Since the stiffness of the SMP can be changed according to the temperature, the measurable force range (the range shown on the vertical axis of Fig. 1) determined by the above strain range can also be changed. Moreover, even if the strain resolution is the same, the force resolution can be changed similarly. In this way, the measurement range and sensitivity of the force sensor can be changed according to the temperature. Note that this concept can be applied to other force sensors with different structures and measuring elements (it is not limited to strain gauges bonded to a bending beam).

Fig. 1
figure 1

Relationship between applied force and strain on cantilever fixed SMP sheet. As the elastic modulus of the SMP can be changed according to the temperature, the relationship between the strain and the applied force can also be changed

Compared with the conventional force sensor, the new force sensor with SMP properties has the following advantages:

  1. 1.

    Since the measurement range and sensitivity can be changed, it is not necessary to replace the force sensor to match the measurement target.

  2. 2.

    Softening of the surface in the rubbery state could reduce the impact forces when the sensor moves and contacts an unexpected object.

First prototype

Prototype

The prototype SMP force sensor (thickness: 1.2 mm) is shown in Fig. 2. Note that dimensions were not optimized, but can be scaled depending on the application. In the present study, we chose a polyurethane SMP (SMP Technologies Inc., MP4510, T g = 45 °C) and prepared an SMP sheet with an embedded electrical heating wire in a manner similar to that described in our previous study [7]. The fundamental characteristics of this material taken from the product catalogue are summarized in Table 1. The coefficient of linear thermal expansion of the polyurethane SMP is 11.6 × 10−5 K−1 [10] and larger than that of steel. The two liquid components were mixed, poured onto a plate, and cured. Then, the thick and non-uniform SMP sheet was pressed and heated (held at 190–200 °C for 10 min and cooled at ambient temperature for at least 30 min), and the SMP sheet re-memorized a thin uniform shape without air bubbles. In order to heat the SMP sheet, we placed a heating wire made of Nichrome (outer diameter: 0.26 mm, electrical resistivity: 108 × 10−6 Ω cm, Young’s modulus: 214 GPa [ 20], coefficient of thermal expansion: 17.3 × 10−6 K−1 [20]) between two pressed SMP sheets, and the sheets were cohered to each other using a heat press (150 °C, 20 min). The heating wire is shaped like a square wave so as not to affect the mechanical properties of the SMP sheet. The total electrical resistivity is 5.7 Ω.

Fig. 2
figure 2

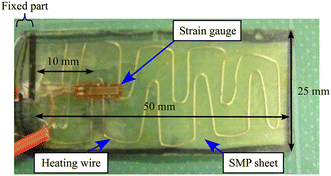

First prototype force sensor using an SMP sheet with embedded electrical heating wire. In order to measure the surface strain of the SMP sheet, two strain gauges were bonded on each side of the SMP sheet

Table 1 Characteristics of SMP MP4510

In order to measure the surface strain of the SMP sheet, we used two strain gauges (KFG-5-120-C1-16L3M2R, Kyowa Electronic Instruments Co. Ltd.) and attached one on each side of the SMP sheet with an embedded electrical heating wire using a cyanoacrylate adhesive (CC-36, Kyowa Electronic Instruments Co. Ltd., operating temperature range: −30 to 100 °C). With the half-bridge system, the strain gauges were connected to the bridge, one each to adjacent sides, with a fixed resistor inserted on the other sides. The half-bridge system was used to eliminate strain components other than the target strain to compensate for the thermal expansion of the SMP sheet [21].

Experiments

The experimental apparatus used to evaluate the proposed sensor is shown in Fig. 3. The applied force was measured when the SMP sheet was deformed in the bending direction. The SMP sheet was bent at temperatures above and below T g. We evaluated the relationship between the bending force and the strain when a bending force was applied to the sensor by an indenter connected to a load cell (LVS-500GA (T < T g), LVS-50GA (T > T g), Kyowa Electronic Instruments Co. Ltd.). The load cell and the prototype sensor were attached on a manual and automatic stage (SGSP26-50, Sigma Koki Co., Ltd.), respectively. The prototype sensor was automatically displaced using the automatic stage at a constant speed (20 mm/s). The distance between the fixed part and the indenter was 50 mm. The applied alternating voltage on the heating wire was changed by a voltage controller. The experiments below T g were performed at room temperature. The surface temperature was measured using a digital infrared temperature sensor (FT-H10, Keyence Co.). Since it was difficult to guarantee a uniform temperature of the SMP sensor, we raised the temperature to approximately 80 °C (significantly above the T g of 45 °C) to ensure that all of the SMP material in the sensor was well within the rubbery state. The thermogram of the heated SMP sheet captured by an infrared thermal camera (NEC Avio Infrared Technologies Co., Ltd, F30W) is shown in Fig. 4.

Fig. 3
figure 3

Experimental apparatus used to evaluate the force sensor. A bending force was applied to the cantilever fixed prototype sensor by an indenter connected to a load cell. The prototype sensor was automatically displaced using an automatic stage

Fig. 4
figure 4

Thermographic image of the prototype force sensor using an SMP sheet heated above T g

From the relationship between the applied force and the strain obtained using the above experiment, we calculated the gradient of the linear approximation formula. We then compared the calculated force using the linear approximation formula with the applied force measured by the load cell. We measured these forces when the sensor tip was displaced randomly.

Results and discussions

The relationship between the applied force and the measured strain below and above T g is shown in Fig. 5. In this figure, the relationship between the applied force and the strain calculated using Eq. (3) is also shown as “theoretical” values. As shown in this figure, similarly to Fig. 2, the change in load for the same strain change can significantly vary according to the temperature. Namely, the sensor can measure a minute force above T g. For example, as can be seen from the gradient of the linear approximation formula, 100 με of strain change corresponds to 0.03 N (T < T g) or 0.01 N (T > T g) of applied force. For conventional force sensors, it is necessary to replace the sensor for different measurement ranges and sensitivities. However, by changing the temperature, our sensor can measure a large range of forces without replacing the sensor. As shown in this figure, the difference between the measured and theoretical values is large above T g. One reason is that the embedded heating wire is stiffer than the SMP sheet in the rubbery state, and the change of the elastic modulus between two states became small similarly to as observed in our previous study [7].

Fig. 5
figure 5

Relationship between applied force and strain on SMP sheet (first prototype). The alternate long and short dash lines show linear approximation. The linear approximation formulae are also shown

Substituting the strain measured by the prototype sensor into the linear approximation formula in Fig. 5, we calculated the applied force and compared it with that obtained by the load cell when a random force was applied. Comparisons of the two forces below and above T g are shown in Figs. 6 and 7, respectively. As shown in these figures, the two forces are almost identical in both experiments. Namely, our sensor can accurately measure the applied force. In Figs. 6 and 7, the absolute average differences between the two forces are 0.0081 and 0.021 N, respectively. The differences correspond to 1.7 and 21% of each maximum measured force, respectively. As shown in Fig. 7, the difference between the two forces gradually increased above T g. One reason is the creep deformation of the SMP sheet. Another reason is that the SMP sheet could not recover to the initial shape quickly because of the viscosity of the SMP sheet, and the load could not accurately measure the force. Creep and stress relaxation are large in the SMP. Therefore, we will consider the effects of the viscous term and modify Eq. (3) in future studies.

Fig. 6
figure 6

Comparison of two forces measured by first prototype sensor and load cell when a random force was applied (T < T g). Substituting the strain measured by the prototype sensor into the linear approximation formula in Fig. 5, we calculated the applied force

Fig. 7
figure 7

Comparison of two forces measured by first prototype sensor and load cell when a random force was applied (T > T g). Substituting the strain measured by the prototype sensor into the linear approximation formula in Fig. 5, we calculated the applied force

Second prototype

Problems with prototype sensor

As shown in “First prototype” section, the strain measured by the prototype sensor is smaller than the theoretical values above T g. One reason other than the stiffness of the embedded heating wire described in “First prototype” section is that the difference in stiffness between the strain gauge and the SMP in the rubbery state is too large to transmit the deformation from the SMP to the strain gauge. Moreover, the adhesive would affect the mechanical properties of the attached surface of the SMP sheet. On the other hand, the changes in measurement range and sensitivity depend on the Young’s modulus of the SMP (a change of 100- to 1000-fold) and are not adjustable. However, the change may be too large for some application areas. Therefore, in this section, we improved the proposed sensor by bonding the SMP and steel sheet and attaching the strain gauge onto the steel.

Theory

We assumed that the embedded wire is negligible. When the composite beam using SMP and steel sheets (Fig. 8) is bent, R is expressed as follows [19]:

$$\frac{\text{1}}{R}\text{ } = \text{ }\frac{Wx}{{E_{\text{M}} I_{\text{M}}^{'} + E_{\text{T}} I_{\text{T}}^{'} }}$$
(4)

where E M and E T are the elastic moduli of SMP and steel, respectively, and \(I_{\text{M}}^{'} \text{ }\) and \(I_{\text{T}}^{'} \text{ }\) are the area moments of inertia of the SMP and steel about the neutral axis of the composite beam, respectively. \(I_{\text{M}}^{'} \text{ }\) and \(I_{\text{T}}^{'} \text{ }\) are expressed as follows:

$$I_{\text{M}}^{'} \text{ } = \frac{{bh_{\text{M}}^{3} }}{{\text{12}}} + \left( {h_{\text{N}} - \frac{{h_{\text{M}} }}{2}} \right)^{2} bh_{\text{M}}$$
(5)
$$I_{\text{T}}^{'} \text{ } = \frac{{bh_{\text{T}}^{3} }}{{\text{12}}} + \left( {h_{\text{M}} - h_{\text{N}} + \frac{{h_{\text{T}} }}{2}} \right)^{2} bh_{\text{T}}$$
(6)

where h M and h T are the thicknesses of the SMP and steel plates, respectively. h N is the distance between the neutral axis and the SMP surface and expressed as follows:

$$h_{\text{N}} \text{ } = \text{ }\frac{{E_{\text{M}} h_{\text{M}}^{2} + E_{\text{T}} \text{(2}h_{\text{M}} h_{\text{T}} + h_{\text{T}}^{2} \text{)}}}{{2(E_{\text{M}} h_{\text{M}} + E_{\text{T}} h_{\text{T}} )}}$$
(7)

From Eqs. (1) and (4), using the strain on the surface of the steel plate (ε), W is expressed as follows:

$$W\text{ } = \text{ }\frac{{\text{(}E_{\text{M}} I_{\text{M}}^{'} + E_{\text{T}} I_{\text{T}}^{'} \text{)}\varepsilon }}{{(h_{\text{M}} + h_{\text{T}} - h_{\text{N}} )x}}$$
(8)

ε below and above T g is expressed as ε g and ε r, respectively. We calculated the relationship between h T/h M and ε r/ε g substituting the dimension of the prototype (see the next subsection for more details) and material properties (Table 1) into Eq. (8) (Fig. 9). We assumed that E T = 193 GPa. As shown in this figure, by changing the thickness of the steel plate, the change in strain based on temperature can be modified. Therefore, the change in the measurement range based on temperature can be modified. On the other hand, when the strain gauge is attached on the SMP side, using the strain on the surface of the SMP sheet ( \(\varepsilon^{\prime}\)), W is expressed as follows:

$$W\text{ } = \text{ } - \frac{{\text{(}E_{\text{M}} I_{\text{M}}^{'} + E_{\text{T}} I_{\text{T}}^{'} \text{)}\varepsilon^{\prime}}}{{h_{\text{N}} x}}.$$
(9)
Fig. 8
figure 8

Specifications of new steel plate bonded-type sensor (second prototype). a Overview. b Cross section

Fig. 9
figure 9

Relationship between thickness (h T/h M) and strain ratios (ε r/ε g) of second prototype sensor [theoretical value predicted by Eq. (8)]. Theoretical value predicted by Eq. (9) is also shown by dotted curve

We also calculated the relationship between h T/h M and \(\varepsilon^{\prime}_{\text{r}} /\varepsilon^{\prime}_{\text{g}}\) (dotted curve in Fig. 9). Although the change in strain based on temperature can also be modified by changing the thickness of the steel plate, the large difference in stiffness between the strain gauge and the SMP would affect the measurement accuracy. Therefore, in this study, we attached the strain gauge on the steel plate. In future studies, we will consider another kind of design method to improve the force sensor, in which two stainless plates are bonded to the two sides of the SMP sheet and the half-bridge system with two strain gauges are used. Moreover, the evaluation of the effect of different thickness SMP sheet is beyond the scope of this paper.

Prototype and experiments

The prototype of the SMP force sensor with a steel plate is shown in Fig. 10. The SMP sheet with the embedded heating wire was prepared similarly to that described in “First prototype” section. The total electrical resistivity is 5.3 Ω. We bonded the SMP sheet (thickness (h M): 1.2 mm) and steel plate (SUS304H, thickness (h T): 0.05, 0.1, 0.2, 0.3, 0.5 mm) using double-sided tape. As the strains on the two surfaces are different, we cannot use the half-bridge system with two strain gauges. Therefore, we attached one strain gauge (KFG-5-120-C1-16L3M2R, Kyowa Electronic Instruments Co. Ltd.) onto the steel plate and measured the strain on the surface of the steel plate. We evaluated this prototype similarly to that described in the previous section.

Fig. 10
figure 10

Second prototype of force sensor using SMP sheet bonded to steel plate. a Top view. b Bottom view. In order to measure the strain on the surface of the steel plate, one strain gauge was bonded on the steel plate

Results and discussions

Some results of the relationship between the measured strain and the applied force is shown in Fig. 11. In this figure, “theoretical” values calculated using Eq. (8) and the linear approximation formula are also shown. As shown in this figure, the measured force range can be changed according to the thickness of the steel plate. On the other hand, the proposed sensor can measure a minute force above T g, and the measured force range below T g is larger than that above T g, similarly to Figs. 1 and 5. Moreover, we could also construct a force sensor using both SMP and steel plates whose measurement can change according to the temperature without the replacing the sensor. In Fig. 11a and b, the changes in gradients became larger than that shown in Fig. 5 because the difference in stiffness between the strain gauge and the steel plate is small, and the strain gauge became easy to deform. Furthermore, the difference between the experimental and theoretical values became small above T g (Fig. 11).

Fig. 11
figure 11

Relationship between applied force and strain on steel plate (second prototype): a h T = 0.05 mm, b h T = 0.1 mm, c h T = 0.3 mm. The alternate long and short dash lines show linear approximation. The linear approximation formulae are also shown

The relationship between h T and ε r/ε g is shown in Fig. 12. In this figure, the theoretical values calculated by Eq. (8) are also shown. The measured values are almost the same as those calculated using Eq. (8). However, when h T is small, the difference is large. One reason is the effect of the embedded wire being relatively large when the steel plate is thin. Moreover, note that in practical applications it is more necessary for this type of sensor to maintain a constant temperature and eliminate the thermal expansion of the SMP than that shown in the previous section because there is only one strain gauge. Furthermore, we should consider the difference of the thermal expansions between the SMP and the embedded Nichrome wire in future studies.

Fig. 12
figure 12

Relationship between h T and ε r/ε g of second prototype sensor. The theoretical values calculated by Eq. (8) are also shown

We compared the calculated force using the linear approximation formula in Fig. 11 with the applied force measured by the load cell. As an example, when h T = 0.05 mm, the transitions of the force below and above T g are shown in Figs. 13 and 14, respectively. The sensor tip was displaced randomly using a stage. As shown in Figs. 13 and 14, similarly to Figs. 6 and 7, the two measured forces are almost identical. In Figs. 13 and 14, the absolute average differences between the two forces are 0.19 and 0.042 N, respectively. The differences correspond to 5.2 and 14% of each maximum measured force, respectively. Moreover, although we applied a similar displacement below and above T g, the measured force range is significantly different.

Fig. 13
figure 13

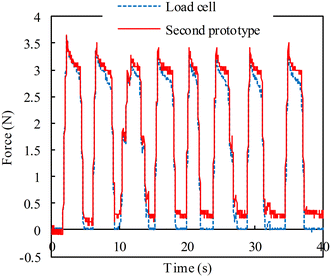

Comparison of two forces measured by second prototype sensor and load cell when a random force was applied (T < T g, h T = 0.05 mm). Substituting the strain measured by the prototype sensor into the linear approximation formula in Fig. 11a, we calculated the applied force

Fig. 14
figure 14

Comparison of two forces measured by second prototype sensor and load cell when a random force was applied (T > T g, h T = 0.05 mm). Similarly to Fig. 13, we calculated the applied force

Conclusion

We have developed a force sensor using an SMP sheet with an embedded electrical heating wire. In this study, we evaluated two types of prototype sensors. Through experiments on the prototypes, which utilize the stiffness change of the SMP based on the temperature, we showed that with the proposed sensor the measurement range and sensitivity can be changed without replacing the actual sensor. The first prototype consists of strain gauges bonded to the bending SMP beam. Moreover, by adding a steel plate, we fabricated a second prototype. The second proposed sensor can be improved and can alter the change ratio of the strain according to the thickness of the steel plate.
