Unsupervised learning approach to automation of hammering test using topological information

Abstract

In this paper we present an online unsupervised method based on clustering to find defects in concrete structures using hammering. First, the initial dataset of sound samples is roughly clustered using the k-means algorithm with the k-means++ seeding procedure in order to find the cluster best representative of the structure. Then the regular model for the hammering sound, the centroid of this cluster, which is assumed to be the non-defective sound model, is established and finally used as a reference to conduct diagnosis on the whole dataset. During the model generation phase, topological information on the spatial distribution of samples is used to attribute varying importance to each sample and therefore take into account meticulous diagnosis of certain areas. The algorithm is fast and reliable enough to allow efficient diagnosis by running it each time a new sample is acquired. Tests on two commonly found types of defects, namely delamination and void type defects, were conducted on experimental test blocks and yielded satisfying results. This method also performed well in field environments.

Background

The designation concrete covers a large spectrum of composite materials composed of aggregates bonded by a fluid cement, hardened over time. This material is extremely common in modern societies, especially in social infrastructures such as tunnels. As any other material, concrete can be greatly affected by aging and environmental conditions. In some cases, these factors may lead concrete structures to structural failure [1,2,3]. In order to guarantee their safe use, careful maintenance is needed. Among all the operations taken to maintain these structures, the diagnosis for defects is critical since it is a decision-making step.

Among all the available non-destructive testing methods [4], a popular one for concrete structures is called hammering test (Fig. 1). In this study, we focused only on one variation of hammering called “tapping”?. This method, consisting of an operator perpendicularly hitting one point on the surface of the structure with a hammer and assessing the presence of defects from the perceived sound, has the advantages of being non-destructive and not needing heavy equipment. However, it requires a skilled operator to be able to correctly analyse the sound and given the huge population of structures in need of examination currently in service [5], testing them all with this traditional method reveals to be problematic. Therefore, the automation of the hammering test is demanded.

Fig. 1
figure 1

Hammering test conducted by a professional on the ceiling portion of a tunnel: only a simple hammer is needed thus the popularity of this non-destructive testing method. Still, there is the need of skilled operators to correctly differentiate hammering sounds and given the great population of structures in need of testing, automation is actively demanded. Also, since it relies heavily on the operator’s skills, the final result remains subjective

Various attempts to adapt the hammering test in an automatic form have been made in order to obtain a faster, more reliable and objective method to find defects in concrete structures. References [6, 7] were focused in finding sound features enabling differentiation between defective and non-defective spots as well as on the exploration of new methods to replace or aid the human operator holding the hammer in order to get more regular and reliable sound samples. References [8,9,10,11] were more focused on the data analysis part of the problem and used supervised learning to correctly distinguish sounds from non-defective areas and sounds from defective areas. These approaches have given promising results, however their main drawback is the necessity to train the algorithm first using a training set. Depending on various factors, especially during the hardening phase, concrete can greatly differ from one structure to another, even if they were made from the same batch, thus choosing the adequate training set can be difficult. Our proposed method takes a new approach to this task using unsupervised learning, based on clustering, and therefore bypasses the need of training sets.

In our previous method [12], the major cluster from which the centroid to be used as model was determined by finding the cluster with the biggest number of samples in it. This method was acceptable when diagnosis was conducted following a regular grid. However, in practice, defective areas of the structure are more carefully examined: this could result in having more defective samples in the dataset and non-defective ones and thus, the method wrongly choosing the wrong centroid as regular model. In this paper, we introduce a weight system to balance the respective influence of samples in accordance with their spatial distribution on the tested structure surface. This enables proper balancing of each sample’s relevance given their mutual spatial proximity.

Concrete structure inspection is generally divided into two stages [13]. The first one, called primary inspection, is a rough one, conducted on the whole structure. If any defect is found during this process, the secondary inspection is conducted only at these spots to accurately identify the defect. Given the nature of our proposed method, adaptable and based on statistical irregularity detection, it can be considered particularly suited for the primary inspection of concrete structures.

In this paper, we propose a method to allow training set-free, real-time, adaptive hammering testing of concrete structures. This allows hammering testing to be conducted on a unknown structure, obtaining a primary inspection diagnosis and narrowing down spots for secondary inspection.

Methods

Concept

The main assumption is that most of the tested structure is non-defective. That means that defects, such as cracks and voids, do not occupy the majority of the tested surface. This assumption is acceptable since concrete structures subject to severe deterioration are blatant and therefore do not require to be tested, a simple inspection by naked eye is enough. Considering this, it becomes possible to characterize the non-defective sound as the regular sound found on the tested surface.

This approach has been motivated by two main reasons. First, interview conducted with actual professionals in charge of conducting hammering tests revealed that they were, in fact, more focused in hitting multiple spots on the structure at high speed and looking for sounds that stands out rather than relying in past experiences and knowledge. In this aspect, our proposed method is closer to what human operators do. Secondly, as stated earlier, it has been observed that concrete is extremely sensible to physical conditions such as temperature, humidity, etc., that especially during the hardening phase of the fabrication process. The result is that even among concrete blocks that were made from the same source, non-defective spots do not return similar hammering sounds at all. This was observed at various occasion with concrete test blocks we used in our experiments: even tough they were made in a single batch, non-defective spots in two different blocks returned different sounds.

More precisely, given an initial dataset of hammering samples, we can distinguish 4 steps in our proposed method as illustrated in Fig. 2:

  1. 1.

    Regroup hammering samples that are similar.

  2. 2.

    Find the major group of the tested structure.

  3. 3.

    Extract the centroid of this group and establish it as the regular, non-defective model.

  4. 4.

    Use the generated regular model as a reference to conduct diagnosis on the samples.

Fig. 2
figure 2

Main steps of our proposed method given a dataset of samples: 1 roughly cluster in order to swiftly make groups of similar sound samples. 2 Find the major cluster i.e. the cluster best representative of the tested structure. 3 Extract the regular model from this cluster, in this case, the centroid. 4 Use the previously found regular model as a scale, reference for the non-defective sample to conduct diagnosis on the whole dataset

Regrouping hammering samples

Description of a hammering sample

In this paper, two elements are used to define a hammering sample:

  1. 1.

    The recorded sound.

  2. 2.

    The location where the sample was recorded.

As it is usually done when handling audio data, Fourier spectrum is used as feature vector for a hammering sound.

Given a sound sample \(X_{i}\) defined by (\(x_{0},\ldots,x_{N-1}\)), N being the sampling rate multiplied by the recording duration, collected on a particular location \(\mathbf {L}_{i}\) on the structure, its Fourier spectrum (\(a_{0},\ldots,a_{N-1}\)) is obtained using Fast Fourier Transform (FFT).

Metric

In order to compare sounds, i.e to give a value of how much two hammering sounds are similar, a meaningful distance measure between sound samples in the Fourier spectrum space has to be defined.

Given two Fourier spectrum A and B, respectively defined by (\(a_{0},\ldots,a_{N-1}\)) and (\(b_{0},\ldots,b_{N-1}\)), the sample Pearson correlation coefficient is defined as in Eq.  (1).

$$\begin{aligned} r_{AB} = \frac{\sum \nolimits _{l=0}^{N-1} [(a_{l}-\overline{a})(b_{l}-\overline{b})]}{\sqrt{\sum \nolimits _{l=0}^{N-1}(a_{l}-\overline{a})^2}\sqrt{\sum \nolimits _{l=0}^{N-1}(b_{l}-\overline{b})^2}} \end{aligned}$$
(1)

The sample Pearson correlation coefficient has the advantage of providing a zero mean and unit standard deviation normalizations. Features of the Fourier spectrum of each sound sample used for comparison are only related to the general shape and amplitude variations, directly influenced by the applied hammering force, are not taken into account. Therefore, it can be considered robust towards changes of the force applied by the human operator of the hammer that induces sounds of different amplitude being recorded, i.e. this mitigates the need to take into account the input to the system for our method and a simple hammer can still be used for testing.

The sample Pearson correlation coefficient ranges in [−1,1]. Negative values signifies a negative correlation, and positive values corresponds to correlation. Values close to zero implies there is no correlation between the two samples. We can define a distance measure based on this coefficient, a correlation distance, as in Eq.  (2).

$$\begin{aligned} d(A,B)=\frac{1-r_{AB}}{2} \end{aligned}$$
(2)

The defined distance is ranging in [0,1], returning small values the more the compared sounds are alike and zero if the sounds are identical. Cases of negative correlation are located in the [0.5,1] range since negative correlation is in our case not a similarity.

Rough clustering using k-means++

In our case, we do not need quality clusters since clustering is not our goal, i.e. clustering is not conducted as a step for further cluster analysis. The final aim is to obtain the regular model. Moreover, to work toward a system with the capability to conduct diagnosis in real-time, a fast algorithm would be useful. Considering the usual dataset of hammering samples, usually around a few hundred in our application, we found the k-means algorithm, usually used in data consolidation or pre-clustering, being adequate: it is simple and computationally fast enough.

Even if defective samples can be spread out in feature vector space (defects are unpredictable and can be of several variations in a single structure), more compactness can be expected for non-defective samples: k-means should not fail to put at least one centroid in the non-defective sample group.

In order to obtain more consistent runtime for the k-means algorithm, the k-means++ seeding procedure [14] is used. In our proposed method, only two clusters are needed, therefore the procedure is applied for only two seeds. The first seed is chosen randomly following an uniform distribution. For the second seed, a probability distribution to reflect the similarity to the first seed is devised: each sample \(X_{i}\) has a probability \(P(X_{i})\), as defined in Eq.  (3), based on the previously defined metric to the first seed \(S_{1}\), \(d(X_{i},S_{1})\), to be chosen. Unlike the regular seeding process where the seeds are simply chosen randomly, this procedure allows the seeds to be spread trough the dataset and therefore close to the final centroids location. Other than the acceleration of the algorithm for large datasets, the advantage to use this seeding procedure is that it stabilizes the run time by not being entirely random such as the regular k-means seeding method.

$$\begin{aligned} P(X_{i})=\frac{d(X_{i},S_{1})^2}{\sum \nolimits _{i=1}^{N_{sample}}{d(X_{i},S_{1})^2}} \end{aligned}$$
(3)

With both the metric and the seeding procedure defined, k-means is used to cluster the dataset of hammering sound samples, transformed into Fourier spectrums, into two clusters.

Finding the major cluster

In our approach to this task, the cluster best describing the tested structure has to be found.

Defining the regular model based on the number of sample contained in each cluster would be enough in the case of samples being collected following a grid: each sample would then have the same weight in the final comparison. However, when collecting samples freely on the structure, defective areas tend to be tested meticulously and therefore, the number of samples from defective spots tend to surpass the number of samples from non-defective spots. If this happens, such simple implementation would wrongly recognize the defective sound as being the regular sound and thus the non-defective sound model.

To overcome this problem, a weight symbolizing the influence of one sample is defined. More concretely, for each sample can be considered an area around it where it is the representative of. In this paper, we simply choose to define this area as a disc centered on the location of the corresponding sample \(\mathbf {L}_{i}\) (Fig. 3). This location is simply collected by painting the hammer head in red and tracking it using image processing: when a hammering sound is detected by the trigger and recording begins, the location of the hammer head at that moment is saved along with the sound data.

Fig. 3
figure 3

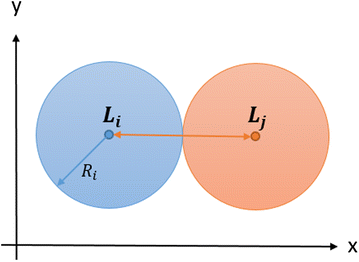

Illustration of the proposed weight associated to each sample: a disc centered on the spot hit with the hammer with a radius half of the Euclidian distance to the nearest neighbor. This intends to symbolize the area around the sample where it is relevant, i.e. where it could be assumed that the returned sound would be extremely similar to the one collected. The value of the radius was chosen in order to avoid overlapping

Given a sample \(X_{i}\) contained in dataset D among \(N_{sample}\) samples, with its location \(\mathbf {L}_{i}\), the radius of the sample’s area is defined as half of the Euclidian distance to its nearest neighbor:

$${R_i} = \frac{1}{2}*\mathop {\min }\limits_{\forall j \in D} \left\| {{\mathbf{L}_{i}} - {\mathbf{L}_{j}}} \right\|$$
(4)

The surface of this disc is then used as a weight for this sample:

$$\begin{aligned} W_{i}=R_{i}^2 \end{aligned}$$
(5)

With this method, the importance of samples is dependent of their topological distribution and therefore, it is possible to conduct a diagnosis that takes into account what has been already obtained in the previous runs of the method.

To determine the cluster containing most of the non-defective samples, the weight devised in Eq.  (5) is expanded to clusters: for a cluster \(Cl_{i}\), its weight \(W_{Cl_{i}}\) is defined as the sum of weights of all samples contained within it. This means to represent how much spatial importance this cluster has on the structure.

$$\begin{aligned} W_{Cl_{i}}=\sum _{\forall X_{j} \in Cl_{i}}W_{j} \end{aligned}$$
(6)

Then, the major cluster is defined as the one with the biggest weight:

$$\begin{aligned} Cl_{major}=(Cl_{j} | W_{Cl_{j}}=\max _{i}{W_{Cl_{i}}}) \end{aligned}$$
(7)

Generation of the regular model and diagnosis

With the regular cluster \(Cl_{major}\), containing \(N_{major}\) samples, found previously, its centroid \(C_{major}\) is used as our regular model:

$$\begin{aligned} Regular \; Model = C_{major} = \frac{1}{N_{major}}\sum _{\forall {X_{i} \in Cl_{major}}}X_{i} \end{aligned}$$
(8)

Each sound sample of the dataset is finally compared to the model using once again the correlation-based distance defined in Eq.  (2), i.e. the generated regular model is used as reference to scale and evaluate the samples. Since the model represents the most regular sound shape in the dataset, irregularities, i.e. distant sound samples can be recognized as characteristic of defects on the structure, distance to the regular model can be expressed as a similarity value (Fig. 4). From there, a simple threshold can be enough to determine if a sample is defective or not. Given a threshold value Th, a boolean value defective for a sample \(X_{i}\) could be defined as:

$$\begin{aligned} \textit{defective}(X_{i}) = \left\{ \begin{array}{ll} false &{} \text{ if } d(C_{major},X_{i}) < Th \\ true &{} \text{ if } d(C_{major},X_{i}) > Th \end{array} \right. \end{aligned}$$
(9)
Fig. 4
figure 4

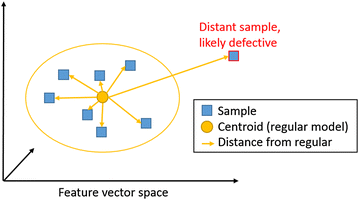

In this feature vector space where only relative distances are obtainable, the regular model serves as a reference for the whole dataset. Since it is meant to be an example of non-defective sound sample, further a sample is from it, the more likely it is that it is from a defective spot

The pseudo-algoritm presented in Algorithm (1) briefly sums-up the mechanics of our proposed method. The clustering step being fast enough, online implementation was possible by simply running it each time a new sample is added to the dataset.

figure a

Results and discussion

Experiments using a traditional hammer

Fig. 5
figure 5

Experimental setup: concrete test block (A), hammer with red head for position recognition by image processing (B), web camera (C) and microphone (D)

The used setup is illustrated in Fig. 5 and experiments were conducted on concrete test blocks containing various man-made defects to simulate natural ones. For each block, defective spots are marked in red on the corresponding schematic.

Test blocks were hit at 210 locations once following a 14 by 14 square grid that covers the whole block. The used hammer was a KTC UDHT-2 (head diameter 16 mm, length 380 mm, weight 160 g), commonly used in hammering test by professionals and sound was recorded at 44.1 kHz using a Behringer ECM8000 microphone coupled with a RolandUA-25EX sound board and a laptop for data analysis. Fourier spectrums were computed by FFT with a window of 1024, thus in vectors of length 512 due to symmetry.

A simple trigger was implemented to conduct clipping to get each hammering sound as a single sample and the hammer head was painted in red in order to be tracked so that the Cartesian coordinates of each sample could be collected.

Delamination-type defects

Delamination is a phenomenon mostly observed in reinforced concrete structures. These structures are often subject to reinforcement corrosion: the reinforcement metal is oxidized and its volume increases. This results in internal stresses in the concrete structure and the apparition of cracks diagonal to the surface of the structure.

Tests were conducted with \(500 \times 500 \times 150\) mm concrete blocks presenting cracks at an angle of respectively 15°, 30° and 45°. The schematics of these test blocks are presented in Fig. 6. Using these schematics as ground truth, receiver operating characteristic (ROC) curve was calculated for each of these blocks (Fig. 7) by varying the threshold value Th used in Eq. 9. It can be noticed that the area under the ROC curve decreases from 0.94 to 0.80 as the crack angle increases from 15° to 45°. This could be attributed to the defect depth: the bigger the crack angle, the deeper the crack runs in the concrete, resulting the sound to be more and more muffled as the crack angle increases, rendering analysis more difficult (Table 1).

In [15], Computer Vision is used to detect cracks on the surface of concrete. Depending on the used preprocessing techniques, the area under the curve varied from 0.87 to 0.99. Our proposed method could therefore be considered acceptable.

In Fig. 8 the correlation distances from the model for non-defective and defective hammering samples of the 15°. delamination test block is shown (in total 210 samples). Except a dozen defective samples that were incorrectly given small distance to the model, it can be observed that our proposed approach successfully separates the two types of samples.

Always for the 15° delamination defect test block, in Fig. 9 the Fourier spectrums of the computed model for non-defective sample, a non-defective sample and a defective sample are shown. It can be seen that the produced model is a Fourier spectrum that more closely resembles the Fourier spectrum of a non-defective sample than of a defective sample.

Time taken for the algorithm to return a result at each new sample was measured. After stabilization, when around 200 samples were collected, the average processing time for a new sample was 454 ms. This allows the hammer to hit the structure about twice in one second and therefore enables our proposed method to keep up processing when hammering is done manually. Since hammering is usually conducted locally, around a suspected area on the structure’s surface, the dataset of samples is not expected to grow up to very large sizes and therefore it can be considered that, in the scope of our application, it is satisfying.

Fig. 6
figure 6

Schematics of the test blocks used for the delamination detection experiments, these blocks present crack of various inclination from the surface: a 15°, b 30° and c 45°. It is worth noticing that these defects were man-made with the intention to closely reproduce field-found delaminations (dimensions specified in mm)

Fig. 7
figure 7

ROC curve for the delamination type blocks. Higher values of delamination inclination means deeper defects and therefore less audible, recordable sounds. This causes a drop in performance in pair with the inclinaison of the delamination. However, considering the still high efficiency for delaminations up to 45° and knowing that the vast majority of field-found delamination falls in this range, our proposed method can be considered satisfying

Table 1 Area under the ROC curve for each delamination type blocks: the maximun value obtainable is 1 and closer to it the method scores, the better it is
Fig. 8
figure 8

Non-defective and defective samples for the 15° delamination test block plotted according to the correlation distance from the devised model. It can be noticed that non-defective samples have lower values than defective samples as the model successfully represents the non-defective sample

Fig. 9
figure 9

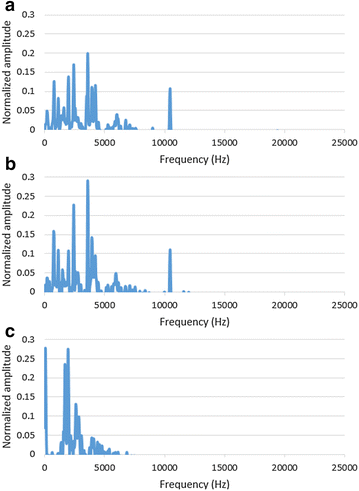

Fourier spectrums of a the computed model, b a non-defective sample and c a defective sample from the 15° delamination test block. The model’s spectrum bears more similarities to the non-defective spectrum than to the defective spectrum: the correlation distance between the model and the non-defective sample was 0.10 whereas it was 0.33 for the defect sample

Void-type defects

For various reasons such as a foreign body or the infiltration of water/air, defects we could call void-type can appear on concrete structures in the field. Basically, during the hardening phase, the concrete was not able to completely fill the required volume. This type of defects is considered extremely dangerous since for one part they tend to make large portions of concrete beneath them to be instable and fall off, and for the other part because unlike delaminations, they are usually not visible at the surface of the structure. The hammering test is in this case a trusted tool for inspection.

A test block containing cuboid-shaped polystyrene bodies were used to simulate this type of defect (molding a block of concrete with a controlled volume of air inside was impossible). Its schematics is presented in Fig. 10.

Fig. 10
figure 10

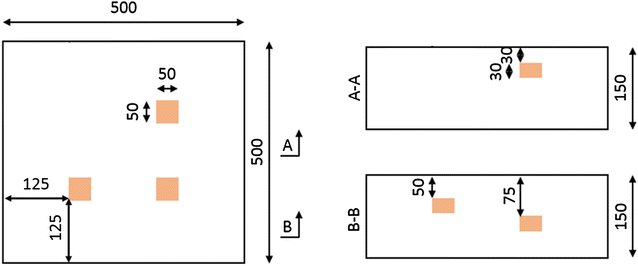

Schematic of the test block used for the void detection experiment: a polystyrene block of \(200 \times 200 \times 30\) mm was placed at a depth of 30 mm in order to simulate a void type defect given the impossibility to induce a controlled volume of air inside a concrete block. (Dimensions specified in mm)

As with the delamination’s case, the ROC curve was established on this block (Fig. 11) for defects of depth 30, 50 and 75 mm. Due to abnormality during production, the defect at 15 mm depth was not available for testing. Again, the value of the area under the curve were calculated (Fig. 11) and are shown in Table 2.

Fig. 11
figure 11

ROC curve for the void type block

Table 2 Area under the ROC curve for void type block

Experiments on the field

Our proposed method was tested under field conditions at an experimental tunnel made in order to naturally present defects. It is worth noticing that these defects are different from the ones on the previously presented test blocks since, though induced, they occurred naturally. Therefore, no ground truth was available in order to quantitatively evaluate our proposed method. However, in order to effectuate a qualitative evaluation, a professional operator conducted hammering and our proposed method was tested on the found defects. The schematic specifying the dimensions of this tunnel is presented in Fig. 12 and the picture in Fig. 13 shows both our setup for data collection and the general area were defects were concentrated.

Fig. 12
figure 12

Schematic of the experimental tunnel used in field environment testing for our proposed method (dimensions specified in mm)

Fig. 13
figure 13

Experimental tunnel for field testing. This tunnel is identical to many found in service but has been made so that it would generate natural defects after a short period after its production. This provided us with natural defects in field environment to test our proposed method

The tested spot on the tunnel was a void type defect identified on the side of the tunnel, at a height of approximately 4 m. The result obtained then is shown in Fig. 14, the threshold value Th was manually adjusted in order to get the best discrimination of defective samples.

Fig. 14
figure 14

Results of our proposed method on the field: the red frame is the area judged defective by a professional before the experiments and on the right picture our proposed method’s results are shown using a color scale, red for spots distant from the regular model and green for spots close to the regular model

Conclusions

Our proposed method was able to successfully identify both delamination and void type defects without the need of any training set, in a real-time fashion and by allowing adaptive hammering testing. The method was also able to show a similar performance on the field, on an unknown and untested structure, and to this regard, it could be judged adequate for the purpose of primary inspection, successfully narrowing down areas for secondary inspection. For future work, we would like to improve this method to ensure increased robustness, especially on the field where sources of noise such as wind are abundantly present. Another point worth further investigating would be on the hammering force; although its influence can to be considered to have been mitigated by normalizations in our devised metric, there is no guarantee that it does not influence the shape of hammering sound spectrums. Therefore, it would be interesting to either measure the hammering force and incorporate this aspect in the diagnosis. Also, with the recent development of automatic hammering modules, that would enable consistent hammering with the same force for the whole structure, the performance of this method in combination with these robots should also be investigated.
