Two-way least-incision transformable end-effector forceps for robot-assisted surgery

ROBOMECH Journal20152:3

https://doi.org/10.1186/s40648-015-0029-8

Received: 7 October 2014

Accepted: 27 January 2015

Published: 8 February 2015

Abstract

In laparoscopic surgery, smaller incisions produce good clinical results for patients. Therefore, there is a great need to develop thinner instruments for use in laparoscopic surgery. However, thinner instruments have smaller end effectors that limit the functionality of the instruments. To address this problem, we previously developed a new type of forceps that uses a least-incision transformable end-effector (LITE) mechanism for graspers of two sizes (i.e., a two-way LITE mechanism), which decreases the instrument exchange frequency and the total procedure time during surgery. Robot-assisted surgery is currently receiving considerable attention. However, instrument exchange during robot-assisted surgery is complicated. The purpose of this study was to develop a new two-way LITE forceps that would be suitable for use in robot-assisted surgery and laparoscopic surgery by being attached to a handpiece to reduce the time and difficulty associated with the instrument exchange during robot-assisted surgery. The experimental results show that the proposed forceps can reduce the total instrument exchange time in a simulated robot-assisted surgery environment, generate sufficient grasping forces to serve as a laparoscopic grasper, and perform switching between its small-grasper and large-grasper modes when operated with one hand using the handpiece. An in vivo experiment was performed on a pig under simulated surgery conditions to evaluate the usefulness of the prototype developed in this study. When operated with a motor drive, the forceps was able to grasp the liver using its large grasper.

Keywords

Laparoscopic surgery Forceps Robot-assisted surgery

Background

Laparoscopic surgery is performed by inserting a camera and an instrument through small incisions in the body cavity. In laparoscopic surgery, smaller incisions produce less physical stress for patients [1]. Therefore, studies are being carried out to develop thinner surgical instruments [2]. However, as instruments become thinner, the sizes of the end effectors also decrease. Consequently, grasping an organ becomes difficult because of the decrease in grasper size [3]. To address this problem, new instruments that transform into large graspers inside the body cavity have been developed [4,5]. In laparoscopic surgeries that require the use of various instruments, exchanging instruments is a complicated task that consumes 10–30% of the total procedure time [6]. Therefore, a single instrument that has multiple functions can reduce the amount of instrument exchange required and thereby reduce the total procedure time [7].

In a previous study, we developed a forceps with a least-incision transformable end-effector (LITE) mechanism for operating graspers of two sizes (i.e., a two-way LITE mechanism) that switches its end effectors to change its size inside the body cavity [8]. The forceps is inserted into the body through a small incision and is used as a large end effector. The forceps decreases the instrument exchange frequency and the total procedure time during surgery.

Robot-assisted surgery is currently receiving considerable attention because it has many advantages, such as improved operability and improved field of vision during laparoscopic procedures. However, quick exchange of surgical instruments is difficult because an assistant performs the instrument exchange on the instructions of the surgeon, and there are many processes to be followed in exchanging an instrument. The use of a two-way LITE mechanism with surgical robots can reduce the difficulty and time associated with instrument exchange. Furthermore, during robot-assisted surgery, the instruments used in laparoscopic surgery must be prepared because the surgeon may need to switch to performing laparoscopic surgery in an emergency. Therefore, hand-held instruments that can be mounted on a surgical robot have many advantages, such as space and cost savings.

The purpose of this study was to develop a new two-way LITE forceps that can be attached to a surgical robot and used for laparoscopic surgery by attaching a handpiece to the forceps. In other words, we adapted the previously developed hand-held two-way LITE forceps to a surgical robot.

Methods

Two-way LITE forceps for robot-assisted surgery

The two-way LITE forceps for robot-assisted surgery was developed with reference to a surgical instrument of da Vinci® surgical system [9] which has been used for many clinical applications [10].The working of the end effector of the da Vinci® instrument is based on the rotation of four disks connected to the side that is attached to the surgical robot. The two-way LITE mechanism performs the movements shown in Figure 1 by the operation of three rods associated with a 5-mm grasper, a 10-mm grasper, and a transformation. The end effector works by performing a linear-slide motion of 3 mm for the 5-mm or 10-mm grasper rod or 5 mm for the transformation rod. We developed a forceps in which the end effector works by the rotation of three disks (Figure 2). Inside the forceps, the rotation of the disks is converted into a linear-slide motion through a slider–crank mechanism.
Figure 1

Transformation procedure.

Figure 2

Two-way LITE forceps.

Handpiece

When the interface of the conventional two-way LITE forceps is used, it is difficult to switch modes using one hand because two switches need to be operated. The first switch, on the back side of the forceps, is used to move the transformation rod. The second switch, on the lateral side of the forceps, is used to exchange the grasping rod. Therefore, we developed a handpiece that can be attached to the forceps and used in laparoscopic surgery. The handpiece facilitates mode switching by the operation of only one switch (Figure 3). The three disks of the forceps can be rotated by operating the handle and switch of the handpiece.
Figure 3

Design of handpiece.

Mode-switching mechanism

The transformation disk and the switch form a slider-link mechanism (Figure 4(a)). The transformation disk rotates when the switch is operated, and the end effector of the forceps undergoes transformation. In addition, the handle operation rotates the grasping disk through a shaft (Figure 4(b)). When the switch is operated, the shaft shifts perpendicular to the direction of the switch movement, and the grasping disk that is operated by the handle is switched (Figure 4(c)).
Figure 4

Handpiece mechanisms: (a) Transformation mechanism (b) Grasping operation mechanism (c) Change of disk engaged with handle.

Prototype

The prototype of the handpiece that is attached to the forceps is shown in Figure 5. It was confirmed that grasping and transformation can be achieved by operating the handle and switch.
Figure 5

Handpiece equipped with two-way LITE forceps.

Evaluation experiment

Instrument exchange time measurement experiment

For comparison purposes, we measured the mode-switching time required by the proposed forceps when fitted with a motor drive, and we measured the instrument exchange time during robot-assisted surgery. The forceps was attached to the experimental device, in which three disks were rotated using the motor. The rotary speed produced allowed the experimental device to perform transformation in 6 s. An environment that mimicked a robot-assisted surgery environment was created as described in a previous study [11]. Five subjects (non-specialists) performed instrument exchanges six times in this environment, and the exchange times were measured. The instrument exchange process is as follows. Process 1 involves pulling the instrument out of a trocar. Process 2 is exchanging the instrument. Process 3 is attaching the instrument to the surgical robot. Process 4 is inserting the instrument into the trocar. The experimental processes were explained to the subjects beforehand, and they started the experiment after practicing the process under the same conditions as those of the experiment.

Grasping force measurement experiment

The grasping forces generated by the forceps using the motor drive and the handpiece were measured. Both experimental systems are shown in Figure 6. In the measurement of the grasping force achieved using the motor drive, the disk of the forceps was given suitable rotation. Grasping was maintained for four seconds, and the grasping force was measured eight times. The motor used was a stepping motor (CRK564PMAPB: Oriental Motor Co., Ltd., maximum torque: 0.78 Nm, basic step angle: 0.36°). In the measurement of the grasping force achieved using the handpiece, weights ranging from 0 to 30 N were hung on the handle in increments of 2 N.
Figure 6

(a) Measurement of grasping force achieved using motor drive (b) Measurement of grasping force achieved using handpiece.

In vivo experiment

Transformation and grasping of the forceps using the motor drive and the handpiece were tested in an experiment performed on a pig under simulated laparoscopic surgery conditions. We tested the forceps to ensure that it functioned normally in vivo, and we used it to lift the liver, which is the heaviest organ in the body.

Mode-switching time measurement experiment using the handpiece

We measured the mode-switching time required by the forceps when using the handpiece and by the conventional two-way LITE forceps to compare their operability. The transformation time from the 5-mm mode closed state to the 10-mm mode open state and the removal time from the 10-mm mode closed state to the 5-mm mode open state were measured. Five subjects used a laparoscopic surgery trainer device (MATT Trainer) to switch between the 5-mm and 10-mm modes, and the mode-switching time required by each of these subjects was measured five times. The experimental processes were explained to the subjects beforehand, and they started the experiment after practicing the process under the same conditions as those of the experiment.

Results and discussion

Results of instrument exchange time measurement experiment

The instrument exchange time was measured in the robot-assisted surgery environment and was found to be 19.5 ± 6.3 s. The motor-driven forceps was able to perform switching in 6 s. The mode-switching time for the motor-driven forceps can be reduced because of the rotary speed of the motor. We infer that the instrument exchange time can be reduced using the two-way LITE forceps in robot-assisted surgery. The number of times that instruments need to be exchanged during robot-assisted surgery will also be reduced because the two-way LITE forceps can switch the grasping mode without complicated instrument exchange processes.

Results of grasping force measurement experiment

The grasping force achieved by the forceps using the motor drive was 4.86 ± 0.17 N in the 5-mm mode and 5.51 ± 0.03 N in the 10-mm mode. These values are averages calculated for grasps maintained for 4 s. The results of the measurement of the grasping force achieved using the handpiece are shown in Figure 7. A previous study concluded that the pinch force necessary to avoid slippage is more than 3.3 N [12]. Because the forceps was able to produce grasping forces of more than 3.3 N with both the motor drive and the handpiece, we conclude that the forceps produces sufficient grasping force for it to be used in practical applications. The disk rotation was adjusted to avoid damage to the two-way LITE mechanism during the motor drive experiment. Changing the material and improving the structure of the forceps will increase the grasp force that the forceps is able to produce.
Figure 7

Results of measurement of grasping force achieved using handpiece.

The maximum grasp force generated by the forceps using the handpiece was approximately 3.8 N in the 10-mm mode. Because the disk rotation is limited by the operating range of the handle, the forceps cannot produce a grasping force greater than this maximum value using the handpiece. When using the motor drive, the forceps produced a greater grasping force because of the larger rotation possible. The rotation of the disks can be increased by improving the grasping operation mechanism of the handpiece.

Results of in vivo experiment

The forceps could not achieve 180° flexural transformation using the motor drive (Figure 8(a)), but the forceps was able to perform grasping in the 5-mm and 10-mm modes and perform mode switching. Furthermore, the motor-driven forceps was able to grasp the liver in the 10-mm mode (Figure 8(b)). The problem of 180° flexural transformation not being achieved also occurred when the conventional two-way LITE forceps was used. Because of the high elasticity of the super-elastic alloy utilized in the flexural joint, the grasping rod did not achieve proper transformation in the 5-mm mode. This problem will be addressed in the future by using a super-elastic alloy with a lower elasticity.

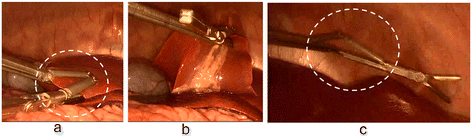

Figure 8

In vivo experiment results: (a) Incomplete transformation (b) Grasped liver (c) Incomplete switching.

Although the transformation achieved when using the handpiece was not as good as that achieved when using the motor drive, grasping was successful in the 5-mm and 10-mm modes. However, the rod did not switch when the 10-mm mode was switched to the 5-mm mode. Therefore, even though the end effector was extended, the operation of the 10-mm grasper was not ideal (Figure 8(c)), and the 5-mm grasper could not be operated. One of reasons for this was that the two-way LITE mechanism tilted about the longitudinal axis and was fixed to the interface. Therefore, it is believed that the linear-slide motion of the 5-mm rod is not performed smoothly and that the disk of the handpiece does not move to the most appropriate position for switching the mode. This problem will be addressed in the future by including a spring that will assist the rotation of the 5-mm disk inside the handpiece.

Results of the mode-switching time measurement experiment using the handpiece

The results of the mode-switching time measurement experiment conducted using the handpiece are shown in Figure 9. The subjects operated the forceps with their left hands only. When using the conventional two-way LITE forceps, the subjects used both hands, and the switching times were measured [8].
Figure 9

Transformation and removal times.

In both modes, the mode-switching time of the forceps when using the handpiece was significantly different from the mode-switching time of the conventional two-way LITE forceps. The proposed forceps required more time to switch to the 10-mm mode than the conventional two-way LITE forceps. However, for switching to the 5-mm mode, it required approximately half the time required by the conventional two-way LITE forceps because the switching could be accomplished with only one switch operation. The forceps must open the 5-mm grasper before the transformation for the 10-mm mode. The reason for this is that the forceps must transform the end effector after the 5-mm disk is rotated for the path length of the 5-mm rod in the forceps to change. This operation adds to the handle operation processes, and hence, the time required for switching in the 10-mm mode increases. This problem will be addressed in the future by improving the switch mechanism by which the transformation is carried out after the operation rod is switched.

It is believed that using the handpiece, the forceps can also be used as an auxiliary forceps because mode switching can be performed with the left hand only. The auxiliary forceps can be operated with the left hand to assist the main forceps that can be operated with the right hand.

Conclusions

This study focused on reducing the time and difficulty involved in instrument exchange during robot-assisted surgery and resulted in the development of a two-way LITE forceps for use with a surgical robot system. This forceps can be used in laparoscopic surgery by attaching it to a handpiece. Evaluation and in vivo experiments were performed to test the forceps. The forceps reduced the instrument exchange time in a robot-assisted surgery environment and was able to generate sufficient grasping force. Furthermore, the forceps performed mode switching in a laparoscopic surgery environment in the same amount of time as the conventional two-way LITE forceps. In addition, the proposed forceps could be operated using one hand when performing mode switching. The grasping operation was performed in vivo. In addition, using the motor drive, the forceps could grasp an organ using a large grasper. These results suggest that the new forceps developed in this study can be used as an auxiliary forceps to assist the forceps held in the dominant hand.

Abbreviation

LITE:

Least-incision transformable end effector

Declarations

Acknowledgments

Authors would like to thank Profs. Hiroshi Kawahira and Tatsuo Igarashi for their comments and support for the clinical aspects of this research. This study is partly supported by Grant-in-Aid for Young Scientists (A) (23680056) by MEXT and Chiba Univ. VBL Project grant.

Authors’ Affiliations

(1)
Graduate School of Engineering, Chiba University
(2)
Center for Frontier Medical Engineering, Chiba University
