Resource investigation for Kichiji rockfish by autonomous underwater vehicle in Kitami-Yamato bank off Northern Japan

ROBOMECH Journal20141:2

DOI: 10.1186/s40648-014-0002-y

Received: 17 January 2014

Accepted: 9 May 2014

Published: 23 July 2014

Abstract

Expensive kichiji rockfish is important catch for fishers and decreas significantly by over fishing. Common investigation method by the trawl for the fish is difficult to survey on rough terrain and need for big support of the ship. This paper proposes resource investigation method for kichiji rockfish using autonomous underwater vehicle (AUV) Tuna-Sand, and image processing method for precise measurement of the fish length. The AUV Tuna-Sand was developed for survey of material and energy resources in deep-sea such, and can observe natural seafloor automatically using only mounted sensors and devices. Our image processing makes a photograph possible to measure accurately the fish length by color correction for removing the unevenness of the brightness and distortion correction.

The AUV Tuna-Sand surveyed for 24 hours in Kitami-Yamato Bank off Northern Japan. The vehicle took about 5,300 pictures of the seafloor during five dives in the bank. 37 kichiji rockfish of about 90 to 340 mm long were in all photographs. The survey results showed the fish of 150 to 200 mm long was most often found in all dives although the number of the othSer long was not many. Six mosaic images made by our method showed that all kichiji rockfish stay on the seafloor by oneself without swam and the shortest distance between kichiji rockfish was 4.0 m.

Keywords

AUV Resource investigation Photomosaic

Background

Expensive kichiji rockfish (Sebastolobus macrochir) live in the Pacific side of main island, Pacific ide Hokkaido in Japan and southwest Okhotsk Sea. The catch of the fish has decreased significantly by over fishing. Widely regular survey of the biomass for kichiji rockfish is necessary to keep its sustainable use [[1]]. The biomass of benthic kichiji rockfish is investigated commonly by combination of the trawl survey and swept-area method [[2]]. The method which can survey effectively in a wide are, is difficult to apply on rough terrain, and has a risk for damaging to the natural habitat. Researchers proposed other resource investigations method for kichiji rockfish such as method using deep-sea monitoring system [[3],[4]] and method using manned submersible vessel [[5],[6]], because the fish usually stay on seafloor without moving and have a high visibility in the photograph. Two methods can survey the biomass of the fish without sampling. However, the monitoring system requires the support from many ship staff for towing type and the submersible vessel limits duration time for the survey to ensure the safety of the vessel operator.

The AUV Tuna-Sand [[7],[8]] was developed for the survey of material and energy resources in deep-sea such as hydrothermal vent and methane hydrate. The vehicle can observe natural seafloor automatically using only mounted sensors and devices, and can be operated on every ship which has the crane for launching and lifting. We surveyed hydrothermal chimney and the seafloor using the AUV Tuna-Sand in many Japanese marine areas, and the vehicle dived 69th times for the survey since 2007. This paper proposes resource investigation method of benthic life using the AUV Tuna-Sand, reports the result of the survey for kichiji rockfish in Okhotsk Sea on June 2013.

Methods

Outline of AUV “Tuna-Sand”

Hovering type AUV “Tuna-Sand” shown its specification in Table 1 can dive until 1,500 m depth. The vehicle consist of two floaters mad of syntactic foam, central hull for control circuits and electrical devices and bottom two hulls for lithium-ion batteries. Two 100 W thrusters for vertical motion and four 220 W thrusters for horizontal motion control five degrees-of-freedom of motion. Pitch and roll direction of the vehicle are static stability because of a long distance between center of gravity and buoyancy. The vehicle position is estimated with accuracy by mounted sensors such as inertial navigation system (INS) consisting of three-axis fiber optical gyro and acceleration sensor, doppler velocity log (DVL) for measuring ground speed and depth sensor. Light-section method using a sheet laser and a forward camera measures the distance to forward obstacle for obstacle avoidance, and is also used for measuring three-dimensional shape of the chimney [[9]]. A still camera locking downward take pictures of the seafloor using a single strobe as shown in Figure 1. The method can observe natural benthic life on the seafloor, because the flash light of the strobe is less irritating to animals than the other lights. Imaging survey by the AUV Tuna-Sand with a still camera and a strobe is effective for resource investigation and biological research of benthic life. The vehicle has profiling sonar for terrain measurement as other observation device.
Table 1

Specification of the AUV Tuna-Sand

Dimension

1.1 m × 0.7 m × 0.7 m

Weight

278 kg

Maximum velocity

1.7 knot

Maximum depth

1500 m

Duration

8.0 h

Actuators

Thrusters 220 W × 4, 100 W × 2

Battery

Li-ion battery 50.4 V, 18 Ah × 4

Sensors

INS, GPS, DVL, Depth sensor, SSBL

Observation devices

Video camera, Digital camera, Profiling sonar

Figure 1

Seafloor photography by the AUV Tuna-Sand.

Survey procedure

The AUV Tuna-Sand can be deployed in the ocean without special shipboard equipment, the ship stuffs have so little work to do during observation. Figure 2 shows survey procedure of the AUV Tuna-Sand. After alignment of an INS using GPS data, the vehicle with two weights for diving and surfacing is lunched in the sea. And the vehicle dives by only one’s own weight without thruster force for saving power resource. The vehicle gets neutral buoyancy by releasing a mounted weight after reaching to the height which a DVL can measure ground speed and altitude, and starts to control its altitude. Then, an INS is aligned by ground speed from a DVL again. The vehicle navigates at a constant velocity and altitude along target route after the alignment, and takes a picture of the seafloor using a camera and a strobe every ten seconds. If a forward camera for light-section method detects the obstacle, the vehicle goes up by horizontal thrusters to high altitude than height of the obstacle for avoidance. The AUV Tuna-Sand releases a mounted weight and goes up by one’s own positive buoyancy after reaching to final way point. And then, the vehicle reaches the depth close to surface and turns off all thrusters, observation devices. If monitored vehicle status such as battery voltage, inside temperature and duration time is an abnormality during the survey, the survey is canceled. The vehicle surfaces positively every times even if it is out of control due to the accident. The reason is that two weights mounted on the vehicle are released automatically after the batteries runs down.
Figure 2

Survey procedures autonomously carried out by the AUV Tuna-Sand.

Image processing method

Taken photographs of the seafloor are corrected and transformed, to measure the biomass of kichiji rockfish and see ambient environment accuracy from the image. Figure 3 shows our imaging process method. The photograph pixel has the unevenness of the brightness s due to distance between from light source. First, the color and the illumination in the photographs are corrected using the method proposed by Singh [[10]]. Let input image F be expressed reflection image R and illumination image I as
F x y λ = I x y λ R x y λ
(1)
where x and y denote the pixel coordinates and λ denotes the color channel (red, green or blue). I(x, y, λ) includes unevenness of the brightness in F(x, y, λ). Thus, we are able to obtain uniform brightness image if I(x, y, λ) is remove from F(x, y, λ). The logarithm of illumination component formed by a single strobe in the water is known to be represented by fourth order polynomial of two variables as
I L x y p 1 x 4 + p 2 x 3 y + p 14 y + p 15 = SP
(2)
where S refer to surface fitting matrix for each pixel and P is the parameter vector. The least square method estimates P from a collar channel F L (x, y) represented by the logarithm of F(x, y, λ). Clear image without luminance irregularity can be obtained by that F L (x, y) removed I L (x, y) is converted to linear scale. Note that I L (x, y) includes low-frequency component of the seafloor and the benthic life in the photograph. However, the benthic life is easy to be seen from obtained color correction image because low its low-frequency component is lower than the other in illumination image.
Figure 3

Image processing for photomosaic construction.

Second processing in our method transforms the color correction image, considering navigation data and seafloor topography. The benthic life length cannot be measured from all photographs in the same scale, because seafloor topography changes camera-to-subject distance and water flow applies the vehicle attitude. The central projection of the camera distorts the photograph depending on the height and position of objective. Ortho-correction converts the images using navigation data and seafloor topography for precise measurement. Time-series altitude of the vehicle estimates the seafloor topography. Final processing in our method makes the photomosaic based on the vehicle trajectory.

Results and discussion

Survey outline

The biomass of kichiji rockfish was surveyed in Kimita-Yamato bunk supported by fisheries research vessel HOKKO-MARU on June 2013. The bunk which is 80 km height and the width of 4 to 7 km is located off northern Hokkaido in Japan. The basket mounted SSBL positioning device and acoustic modem is launched in the sea to monitor position and status of the AUV Tuna-Sand during the survey on the vessel. Figure 4 shows the picture of the basket for monitoring and Table 2 shows dive outline for the survey. Kichiji rockfish live at the depth of 150 to 1,200 m and are normally found in the seabed slope. This research surveyed in five points such as at the depth of 143 to 144 m on the topside, the depth of 305 to 498 m on the north, the depth of 561 to 566 m on the foot, the depth of 652 to 757 m on the north and the depth of 1,045 to 1050 m on the foot in the bunk. The vehicle navigated along the route of a reticular pattern for the detail survey in 73th and 74th dives, and the starlight line for wide area survey in 76th, 77th and 79th dives. Although target altitude in only 73th dive was 2.1 m (1.9 m swath width), target altitude in other dive was changed to 2.5 m (2.2 m swath width) because salty water in Kitami-Yamato bank was very clear.

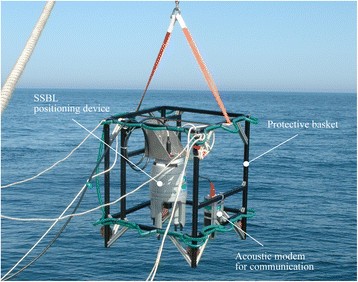

Figure 4

The basket for positioning and communication.

Table 2

Outline of the survey



TS_073

TS_074

TS_076

TS_077

TS_079

Depth (m)

143 - 144

1,045 – 1,050

652 - 757

305 - 498

561 – 566

Location (lat.)

N 144°40.5′

N 144°39.0′

N 144°54.0′

N 144°51.0′

N 144°37.2′

Location (long.)

E 144°11.5′

E 144°20.0′

E 144°26.4′

E 144°24.0′

E 144°17.0′

Cruising speed (m/s)

0.12

0.12

0.12

0.12

0.12

Cruising height (m)

2.1

2.5

2.5

2.5

2.5

Route type

Grid

Grid

Straight

Straight

Straight

Duration (h)

4.0

6.0

4.8

6.4

3.3

Observation area (m2)

340

2,600

3,400

5,500

440

Photography number

158

1,593

1,310

2,077

159

Number of kichiji

0

2

23

2

10

Density of kichiji (/ha)

0

0

68

4

227

Survey results

The AUV Tuna-Sand surveyed for 24 hours and took about 5,300 pictures of the seafloor, during five dives in Kitami-Yamato bank. 37 kichiji rockfishes of about 90 to 340 mm long were in the photographs. All fishes stayed on seafloor and nobody avoided to somewhere. The result suggests our method using the vehicle is effective in resource investigation for kichiji rockfish. Figure 5 shows dive points in Kitami-Yamato bank and Figure 6 shows photographs taken on the survey. Photographs taken on 73th dive had no kichiji rockfish although a little of snow crabs and sea cucumbers. Two kichiji rockfishes and many brittle stars [[11]] which was the food for kichiji rockfish were found at the deepest in the survey in 74th dive (Figure 6(a)). The greatest number of kichiji rockfish and brittle star in the survey stayed on the seafloor and the density of kichiji rockfish was 68 fishes per a hectare in 76th dive (Figure 6(b)). 77th and 79th dive areas had a few brittle stars, and were 4 fishes per a hectare and 227 per a hectare respectively (Figure 6(c) and (d)). Above results suggest that kichiji rockfish likes to live in seabed slope and its biomass does not depend heavily on the number of brittle star.
Figure 5

Dive locations on the Kitami-Yamato bank.

Figure 6

Kichiji rockfish taken by the AUV Tuna-Sand.

Figure 7 shows the density of kichiji fish for each length. The fish of 150 to 200 mm long that was bout three years olds was most often found in all dives, although the number of the other long was not many. The reason is considered that many young fish less than 100 mm long swim at the altitude higher than observational altitude without staying on the seafloor. And the number of the old fish larger than 200 mm is small because they have many opportunities to be cached by fisher.
Figure 7

The population density and length distribution of kichiji rockfish.

Figure 8 shows six mosaic images mad from pictures taken in 79th dive. The circle denotes kichiji rockfish and the square denotes other fish in Figure 8. The figure shows that all kichiji rockfish stay on the seafloor by oneself without swam, the shortest distance between kichiji rockfish is 4.0 m and the shortest between kichiji rockfish and other is 0.8 m.
Figure 8

Six constructed photomosaic images comprising a linear photomosaic.

Conclusion

This paper proposed resource investigation method by the AUV Tuna-Sand and image processing method for clear photomosaic. The investigation method can survey without big support of the ship, because the vehicle can navigate automatically on rough terrain where is difficult to operate by human and take high-resolution picture of seafloor. Our image processing can measure accurately the fish length and the biomass, because it corrects the photograph color for removing the unevenness of the brightness and image distortion. The survey results using our method in Kitami-Yamato bank showed the density of kichiji rockfish for each length. A photomosaic having uniform brightness shows the fish distribution. These results contribute to keep sustainable use of kichiji rockfish. Our method applies to survey the biomass of other benthic animals such as snow club. We will develop method that can survey the biomass of several benthic animals at one time.

Declarations

Acknowledgements

The authors thank the staff of the fisheries research vessel HOKKO-MARU for their help and support. This work was supported by JST CREST “Establishment of core technology of the preservation and regeneration of marine biodiversity and ecosystems”.

Authors’ Affiliations

(1)
Institute of Industrial Science, the University of Tokyo
(2)
Kyushu Institute of Technology
(3)
Hokkaido National Fisheries Research Institute
(4)
The University of Tokyo
(5)
Japan Agency for Marine-earth Science and Technology
