Development of a gas/liquid phase change actuator for high temperatures

ROBOMECH Journal20163:1

DOI: 10.1186/s40648-016-0041-7

Received: 19 May 2015

Accepted: 7 January 2016

Published: 16 January 2016

Abstract

Gas/liquid phase changes produce large volume changes in working fluids. These volume changes are used as the driving power sources in actuators such as micro-pumps and valves. Most of these actuators are utilized in ordinary temperature environments. However, the temperature range in which the phase change actuator can operate depends on the characteristics of the working fluid. We hypothesized that proper selection of the working fluid and the structure of the actuator can enable such actuators to be applied not only in ordinary environments but also in high temperature environments. Consequently, in this paper, we discuss the design and fabrication of a new gas/liquid phase change actuator for use in high temperature environments. Our proposed actuator consists of a bellow body, spring, heater, and working fluid. We used the Inconel super alloy, which is highly heat and corrosion resistant, for the bellow and moving parts of the actuator. For the working fluid, we prepared triethylene glycol, which has a boiling point of 287.3 °C and very low vapor pressure at ordinary temperature. As a result, our proposed actuator can be utilized in high temperature environments up to 300.0 °C. The results of several experiments conducted confirm that our proposed actuator generates 1.67 mm maximum displacement in a 300.0 °C atmospheric environment. In addition, we confirmed that the operation of the actuator is stable in that environment. Our results confirm that a gas/liquid phase change actuator can be used in high temperature environments.

Keywords

Actuator Gas/liquid phase change High temperature Triethylene glycol Bellow

Background

Phase changes in materials, resulting from temperature changes, produce huge volume changes, especially in liquid/gas phase changes. This attribute is utilized to provide a power source for micro-pumps and valves in combination with MEMS (micro-electromechanical system) heaters, micro-channels, diaphragms, and membranes [110]. Kato et al. used this phenomenon to provide a power source for actuators and robots. They made a metal bellow actuator to control cutting equipment and a pipe inspection robot [11, 12]. Phase change is used not only in actuators but also in some kinds of pressure sources. For example, Kitagawa et al. used the triple point of carbon dioxide as a mobile pressure source [13], and Shibuya et al. developed a buoyancy control device for underwater robots using paraffin oil [14].

The actuators described above were developed for use in ordinary environments. In contrast, our aim is to utilize these phase change actuators in special environments. In particular, driving actuators in high temperature environments is a typical example of the special environments being considered. For example, in the hydrothermal synthesis method, which is one of the methods used to fabricate piezoelectric devices, the water solution inside the high temperature chamber needs to be agitated [15]. In one instance where this process was used, the water solution was agitated using an autoclave—an end-over-end shaker with heat. Fabrication of the (Pb, La)(Zr, Ti)O3 (PLZT) film took 24 h. Not only the rotation condition but also the attitude of the sample will affect the quality of the fabrication. The actuators, which produce the inclination of the shaker, are predictably effective devices. Another example is the fabrication process for the ferric oxide crystal via the floating-zone melting method [16]. In this process, the partially melted sample is turned and pulled inside the chamber for growth. Both the processes require 8–24 h and a single directional drive in order to fabricate the tiny sample. We believe that an actuator that can realize linear motion in high temperature environments can rectify these quality problems.

In previous work, we targeted these environments for utilization of actuators and proposed gas/liquid phase change actuators. We subsequently fabricated an actuator driven by the gas/liquid phase change of water. This actuator consisted of a cylinder as a vessel and actuation device, an external heater to excite the phase change, and a spring that controlled the speed of motion. Our proposed actuator was driven in a 180 °C environment. Thus, we realized directional motion with gas/liquid phase changes in a high temperature environment using that actuator [17, 18].

In this paper, we discuss the development of another actuator for utilization in high temperature environments. Our proposed actuator is composed of an Inconel alloy bellow (which is highly heat and corrosion resistant), a spring, a heater with built-in temperature sensor, and working fluid. The bellow produces direct motion without friction when it is moving. This friction is significant in cylinder type actuators; it can cause leaking of the working fluid and disturb the motion of the actuator. Although it has the same bellow shape, our proposed actuator can be sealed very easily and has a more simplified structure.

Springs change the speed of an actuator; when a hard spring is attached, the actuator is driven at a slow speed. Conversely, a soft spring produces a high speed for the actuator. These characteristics were confirmed in our previous study.

In this paper, we explain how we chose the new working fluid to facilitate operation of the actuator in high temperature environments. The triethylene glycol (TEG) working fluid has a liquid phase and a boiling point of 287.3 °C under ordinary atmospheric pressure conditions [19]. These characteristics enable our proposed actuator to operate in a 300.0 °C environment.

In experiments conducted, in which the actuator was driven in a 300.0 °C atmospheric temperature environment by a heater assembled in the actuator, a maximum displacement of 1.67 mm with 2700 J of input power was produced. The results confirmed that our new gas/liquid phase change actuator can be driven in 300.0 °C high temperature environments with TEG working fluid.

Basic principle underlying the gas/liquid phase change actuator

Our proposed actuator is driven by the gas/liquid phase change of its working fluid. When the working fluid is heated, its vapor pressure increases and pushes out the chamber.

The fundamental structure of the proposed actuator is shown in Fig. 1. The actuator consists of a variable volume chamber, springs that produce the reactive force against vapor pressure, heating device, and working fluid.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig1_HTML.gif
Fig. 1

Fundamental structure of the gas/liquid phase change actuator

A bellow is a variable volume vessel. In previous work, we used a cylinder, but this structure has a sliding member in its body. As a result, there was much friction when it was being driven and the working fluid also leaked. Considering the application of our actuator to high temperature environments, we surmised that these issues would be a bottleneck. Consequently, we designed the bellow to be driven without friction because the expansion and contraction characteristics of a bellow are produced by its distinctive structure. In addition, the chamber also includes the spring properties itself.

The springs produce a refractive force against the vapor pressure, in order to control the temperature sensitivities of the actuator. The fundamental theoretical characteristics can be calculated using the very simple equation
$$k\left( {x_{0} + x} \right) = A \cdot P_{bellow}$$
(1)
where k is the spring constant of the actuator; x 0 and x are the initial and produced displacements, respectively; A is the pressurized area of the bellow; and P bellow is the inner pressure of the bellow, which is the vapor pressure of the working fluid.
The general properties underlying the concept of the actuator are illustrated in Fig. 2. When a stiff spring is attached to the actuator, the actuator generates a small displacement with respect to the temperature increment. Conversely, when a soft spring is attached, the actuator generates a large displacement with respect to the temperature increment.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig2_HTML.gif
Fig. 2

Basic underlying concepts of the gas/liquid phase change actuator

The characteristics of the actuator also depend on the properties of the working fluid. The inherent vapor pressure curve of the working fluid determines the driving temperature range of the actuator. Thus, by selecting an appropriate working fluid, we can set the operating temperature range of the actuator.

Various kinds of modes of heating exist; for example, fire, electrical heating, chemical reaction, induction heating, Peltier heating, and IR light.

In our previous work, we confirmed the adequacy of these fundamental characteristics of gas/liquid phase change actuators and designed an actuator that could be driven by the phase change of water in a 180.0 °C environment.

Design of the actuator

We designed a prototype actuator based on our proposed driving principle. As shown in Fig. 3, our actuator consisted of bellows, spring, chassis, and heater unit—which includes the temperature sensor.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig3_HTML.gif
Fig. 3

Design of the actuator

The bellow, the most important part of the actuator, was fabricated using Inconel 600 super alloy—an austenite Nickel–Chromium based alloy. The target temperature, 300.0 °C, is the temperature used for low temperature annealing of stainless steel. This heat treatment process causes stainless steel to lose its corrosion resistance and its mechanical properties to change. By contrast, Inconel alloy has better corrosion and heat resistance than stainless steel as a result of its stable passivating oxide layer. Hence, we chose Inconel super alloy for the actuator. This bellow had outer diameter 22.0 mm, inner diameter 15.2 mm, and length 65.0 mm—with a welded 40 mm diameter flange and a tiny cap, 0.12 mm double layer thickness wall, 19 replications, and a 13.5 N/mm spring constant. The working fluid was poured into this chamber.

The compression coil spring was set on the top of the bellow. This spring was made from oil tempered SiCr-alloyed valve spring wire (SWOSC-V). When the actuator is driven, the bellow extends, and the spring is compressed. Consequently, the spring constant of the actuator is calculated by summing those of the bellow and the spring.

Incidentally, the spring constants are also temperature dependent. In general, the spring constant of a coil spring is calculated using the equation
$${\text{k}}_{spring} = \frac{{Gd^{4} }}{{8N_{a} D^{3} }}$$
(2)
where k spring is the spring constant, G is the modulus of rigidity, d is the diameter of the wire, N a is the number of turns, and D is the average diameter of the coil. This equation reflects the fact that the spring constant of the coil spring depends on the modulus of rigidity of the metal. The modulus of rigidity of SWOSC-V can be calculated using the regression formula [20]:
$${\text{G}} = 7308 + \left( { - 2.604 \times 10^{7} } \right)\exp \left( {\frac{ - 6800}{T + 273}} \right)$$
(3)
where T is temperature. Meanwhile, approximate equations for the spring constants of metal bellows k bellow are given by [21]
$${\text{k}}_{bellow} = \frac{{2\pi m^{2} Et^{3} }}{{3n\left( {m^{2} - 1} \right)b^{2} }}/\left\{ {c^{2} - 1 - \frac{{4c^{2} }}{{c^{2} - 1}}(\log c)^{2} } \right\}$$
(4)
$$m = \frac{1}{\upsilon }$$
(5)
$$c = \frac{a}{b}$$
(6)
where E is the modulus of longitudinal elasticity (Young’s modulus), n is the number of replications, a and b are the radius of the outer and inner diameter, respectively, t is the thickness of the bellow’s wall, and ν is Poisson’s ratio. From these equations we can estimate the temperature dependence of the spring constant of the actuator. The spring constant of actuator k actuator can be calculated using the following equation:
$$k_{actuator} = k_{spring} + k_{bellow}$$
(7)
The results of calculations with the spring constant of the coil spring at 13.9 N/mm and of the bellow at 13.5 N mm under ordinary temperature are shown in Fig. 4. From these results, we determined that at 300.0 °C atmospheric temperature, the spring constant of the actuator declined by 5 %.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig4_HTML.gif
Fig. 4

Temperature dependence of the spring constant

The static displacement of the actuator is affected not only by vapor pressure but also by thermal expansion of the working fluid. Thus, the theoretical static displacement of actuator x was calculated using the equation
$$x = \varepsilon L_{0} \left( {T - T_{0} } \right) + \frac{{A \cdot P_{working fluid} }}{{k_{actuator} }}$$
(8)
where \(\varepsilon\) is the thermal expansion ratio of the working fluid, L 0 is the initial length of the bellow under ordinary temperature, T 0 and T are the ordinary temperature and the current temperature, respectively, and P working fluid is the vapor pressure of the working fluid.
As shown in Fig. 5, the heater is welded onto the flange. It has a rated output of 24 V at 15 W, and a K-type thermoelectric couple on the top of the heating rod, which is 8 mm in diameter and 24 mm in length. All of these parts were inserted into the chassis and the actuator finally assembled, as shown in Fig. 6. The actuator has a length of 220 mm, flange diameter 40 mm, and outer diameter 25 mm. The displacement produced can be observed from the slit in the middle of the chassis or the output shaft at the top of the actuator.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig5_HTML.jpg
Fig. 5

Flanged heater

https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig6_HTML.jpg
Fig. 6

Fabricated actuator

We chose TEG, which has melting point −14.3 °C and boiling point 287.3 °C at ordinary pressure, as the working fluid. This liquid is clear and colorless and has the chemical formula C6H14O4. This working fluid has a very small vapor pressure at ordinary temperature [22]. This is because we chose a liquid that is suitable as a working fluid for driving the actuator in a 300.0 °C environment. The basic specifications of TEG are shown in Table 1.
Table 1

Basic characteristics of TEG

Chemical formula

C6H14O4

Melting/boiling point

−14.3 °C/287.3 °C

Specific gravity

1.1255

Coefficient of expansion

0.00072

Experiments and properties of the actuator

Static properties of the actuator

We conducted an experiment to evaluate the basic static properties of our prototype actuator. In this experiment, we determined the relationship between the atmospheric temperature and the displacement of the actuator, which is produced by atmospheric temperature. The temperature was controlled via a constant temperature reservoir and the displacement measured at 25.0, 100.0, 200.0, 275.0, and 300.0 °C, respectively. Prior to each measurement, the actuator was placed in the respective temperature environment for 1 h. This was carried out to enable the temperature of the actuator to accord with that of the constant temperature reservoir. The displacement was measured by image processing using a photograph taken from the outside of the constant temperature reservoir through the observation window. The experimental setup is shown in Fig. 7.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig7_HTML.jpg
Fig. 7

Experimental setup

In this experiment, 15.9 g of degassed TEG was poured into the bellow and the actuator sealed while ensuring that no air was included. TEG has a thermal expansion ratio of 7.2 × 10−4/°C at 55.0 °C [23]. Thus, an increase in temperature from room temperature to 300.0 °C results in a 22 % increase in the volume of TEG.

The SWOSC-V spring, with a spring constant of 13.9 N/mm, was inserted into the chassis. As discussed previously, the spring constant of an actuator has a small temperature dependence. In this case, a temperature increase from 25.0 to 300.0 °C resulted in a decrease in the spring constant from 27.4 to 26.1 N/mm.

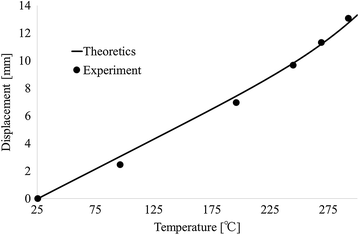

The experimental results obtained are shown along with the theoretical displacement in Fig. 8. The actuator was displaced 13.1 mm at 300.0 °C as a result of the thermal expansion and vapor pressure of TEG. As shown in Fig. 8, the theoretical displacement calculated using Eq. (8) is consistent with the actual experimental value. The output force of the actuator that regards a spring as a load and the vapor pressure of TEG are shown in Figs. 9 and 10. The results show that the experimental values are identical to theoretical values.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig8_HTML.gif
Fig. 8

Displacement of actuator

https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig9_HTML.gif
Fig. 9

Output force of actuator

https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig10_HTML.gif
Fig. 10

Vapor pressure of TEG

Dynamic properties of the actuator

We also evaluated the dynamic properties of the proposed actuator in order to verify that it can be utilized in a high temperature environment. In the experiment conducted, the atmospheric temperatures were set via a constant temperature reservoir to 25.0, 100.0, 200.0, 250.0, 275.0, and 300.0 °C, respectively. After leaving the actuator at each respective temperature for 30 min, 24 VDC was applied to the heater, which resulted in the working fluid being heated in 180 s. After being heated, the actuator was then cooled by heat radiation. The current applied to the heater was 0.6 A, and the applied energy was 2700 J. The experimental results obtained are shown in Fig. 11. In the experiment, the actuator produced 1.67 mm maximum displacement in the 300.0 °C environment with a 56.2 °C temperature increment. Further, in all the environments, the actuator ceased moving immediately as the heating stopped. In addition, the actuator did not revert to any of its initial states. In the initial states, the temperature sensor inside of the bellow indicated 25.5, 96.3, 196.1, 244.9, 269.1, and 292.3 °C, respectively. However, the K-type thermocouple has a 5 % measuring error.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig11_HTML.gif
Fig. 11

Dynamic characteristics of the actuator at various temperatures

We also applied the same energy five times in the 300.0 °C environment. The results are shown in Fig. 12. After the first heating, the actuator did not return to its initial state within 3000 s. We assumed that this phenomenon was because the initial temperature of the working fluid was lower than the atmospheric temperature. However, the other four experiments generated exactly the same displacements. In these experiments, the actuator took 40.8 N average force with 2700 J of input energy in 180 s. The results of these experiments confirm that our proposed actuator can produce stable movements in a 300.0 °C high temperature environment.
https://static-content.springer.com/image/art%3A10.1186%2Fs40648-016-0041-7/MediaObjects/40648_2016_41_Fig12_HTML.gif
Fig. 12

Dynamic characteristics of the actuator at 300.0 °C

Conclusions

We proposed a new actuator that is driven by the gas/liquid phase of a working fluid for high temperature environments. Phase change actuators are driven by the heating of working fluids; thus, their characteristics depend on the characteristics of the working fluid and the springs that produce the reactive force against the vapor pressure.

We designed and fabricated an actuator that can be utilized in a 300.0 °C high temperature environment. The actuator consists of a bellow body, spring, heater with a built-in temperature sensor, and TEG working fluid. The bellow was fabricated from Inconel super alloy, which is highly heat and corrosion resistant, and can generate displacements without friction. The TEG working fluid has a very low vapor pressure at ordinary temperature and a boiling point of 287.3 °C. Consequently, the proposed actuator is controllable in 300.0 °C temperature environments.

The results of static evaluation of the characteristics confirmed that the theoretical properties are consistent with the experimental results. The actuator is heated by atmospheric temperature and produces a displacement using both vapor pressure and thermal expansion of the working fluid.

We operated this actuator using a heater assembled in the actuator in several temperature environments. The results showed that the actuator can be driven in all the environments tested. In the 300.0 °C environment, the actuator generated 1.67 mm maximum displacement using 2700 J of input power. In addition, we operated the actuator fitfully five times in a 300.0 °C environment in exactly the same condition. The results of this examination confirmed that the actuator is stably driven.

Thus, our proposed gas/liquid phase change actuator is suitable for operation in 300.0 °C environments. In order to put this actuator to practical use, the operating time needs to be reduced and a controlling system added. We believe that this actuator can be driven in even higher temperature environments in the future.
